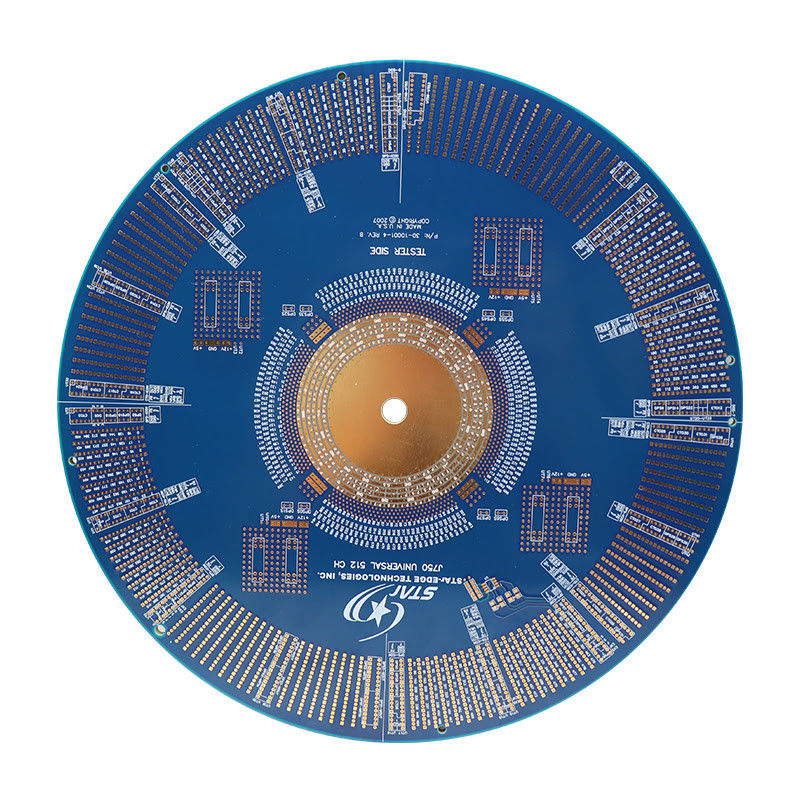

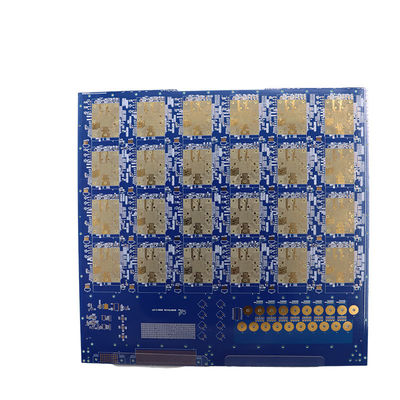

White Solder Mask Multi Layer Circuit Board 0.15mm Min. Silkscreen Clearance

White Solder Mask Multi Layer Circuit Board 0.15mm Min. Silkscreen Clearance

Brand Name: Ben Qiang
Model Number: FR-4/Rogers
MOQ: 1PCS
Price: custom made
Payment Terms: Bank Transfer/Alipay/PayPal
Supply Ability: 200,000 square meters/year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO/TS16949/RoHS/TS16949
Min. Hole Size:
0.2mm
Solder Mask Color:
Green, Blue, Black, Red, Yellow, White
Board Thickness:
0.2mm To 6.0mm
Min. Solder Mask Clearance:
0.1mm
Rohs Compliant:
Yes
Impedance Control:
Yes
Material:
FR-4
Lead Time:
3-5 Days
Packaging Details:
Air bead vacuum packaging
Supply Ability:
200,000 square meters/year
Highlight:

Multi Layer Circuit Board 0.15mm

,

Solder Mask Multi Layer Circuit Board

,

Multi Circuit Boards 0.15mm

Product Description

0.15mm Min. Silkscreen Clearance High layer PCB with White Solder Mask Color

Product Description:



Features:

  • Product Name: High layer PCB
  • Solder Mask Color: Green, Blue, Black, Red, Yellow, White
  • Silkscreen Color: White, Black, Yellow
  • Min. Silkscreen Clearance: 0.15mm
  • Copper Thickness: 1/3 Oz To 2 Oz
  • Surface Finish: HASL, ENIG, OSP, Immersion Silver, Immersion Tin
  • High level PCBs
  • High-layer PCBs
  • High layer printed circuit board
  • High layer PCB design


Technical Parameters:

Technical Parameters High layer PCB
Solder Mask Color Green, Blue, Black, Red, Yellow, White
Material FR-4
Impedance Control Yes
Min. Hole Size 0.2mm
Min. Line Width/Spacing 3mil/3mil
Lead Time 3-5 Days
Surface Finish HASL, ENIG, OSP, Immersion Silver, Immersion Tin
Copper Thickness 1/3 Oz To 2 Oz
Min. Solder Mask Clearance 0.1mm
Rohs Compliant Yes
