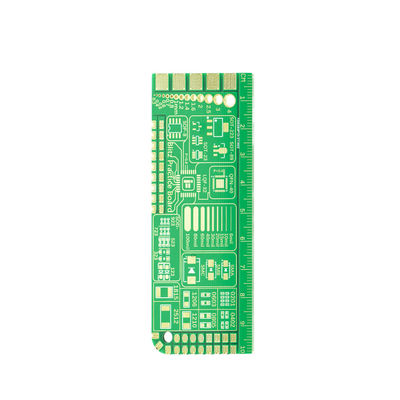

Multilayer Printed Circuit Board Of 0.2mm-6.0mm Copper 1/3 Oz To 2 Oz

Product Description:

Our High Density Interconnect PCB is designed to meet the highest industry standards and is Rohs Compliant, ensuring that it is safe for use in any application. The High Layer PCB is made with the finest materials and the latest manufacturing techniques, ensuring that you get the best performance and reliability possible.

The High Layer PCB is designed with a minimum silkscreen clearance of 0.15mm, making it easy to read and identify the various components on the board. The minimum line width and spacing of 3mil/3mil ensures that the board can accommodate even the most complex and intricate designs without any loss in quality or performance.

Our High Layer PCB is the perfect solution for your next project, whether you are designing a complex electronic system or a simple circuit. With a lead time of 3-5 days, you can have your PCB in hand and ready to use in no time.

So why wait? Order your High Layer Printed Wiring Board today and experience the difference that our High Layer Circuit Board can make in your next project.

Features:

• Product Name: High Layer PCB Board
• Silkscreen Color: White, Black, Yellow
• Min. Line Width/Spacing: 3mil/3mil
• Copper Thickness: 1/3 Oz To 2 Oz
• Layer Count: High Layer Multilayer Board
• Rohs Compliant: Yes

Technical Parameters:

Applications:

The High Layer Multi-level PCB is commonly used in high-speed computing, aerospace, medical devices, and military applications. The board is designed with advanced materials and technology to ensure high reliability, performance, and durability. The construction of the board is such that it can accommodate multiple layers of circuitry, which makes it suitable for complex electronic devices.

The High Layer Multilayer PCB is designed to meet the requirements of high-performance electronic devices. This type of PCB has a minimum silkscreen clearance of 0.15mm and a minimum solder mask clearance of 0.1mm. The minimum hole size is 0.2mm, and the minimum line width/spacing is 3mil/3mil. These specifications are critical to ensure that the board can support the complex circuitry of modern electronic devices.

The High Layer Multilayer PCB is commonly used in applications that require high-speed data transfer, such as in data servers, routers, and other networking devices. It is also used in medical devices that require high precision and accuracy, such as advanced imaging equipment. Additionally, the High Layer Multilayer PCB is used in military applications, such as radar and communication systems.

The High Layer Multilayer PCB is designed with advanced materials such as FR-4, which provides excellent insulation properties to prevent electrical interference. The board is also designed with a high level of precision and accuracy to ensure that the circuitry is optimized for high performance. The board is also designed to withstand high temperatures and other environmental factors, which makes it suitable for use in extreme conditions.

Overall, the High Layer Multilayer PCB is a critical component in modern electronic devices that require high performance, precision, and reliability. As technology continues to advance, the demand for this type of PCB will continue to grow, and it will remain an essential component in the development of complex electronic devices.

Customization:

• Silkscreen Color: White, Black, Yellow
• Board Thickness: 0.2mm To 6.0mm
• Material: FR-4
• Copper Thickness: 1/3 Oz To 2 Oz
• Solder Mask Color: Green, Blue, Black, Red, Yellow, White

Our services cater to the customization needs of High Density Interconnect Board and Multi Layer PCBs to provide you with the best quality products.

Support and Services:

Our High Layer PCB product technical support and services include:

• Design review and optimization
• Prototype development and testing
• Production consultation and guidance
• Quality control and inspection
• Repair and maintenance services
• Technical documentation and training

We have a team of experienced engineers and technicians who are dedicated to providing top-notch technical support and services to our customers. Whether you need help with designing a complex PCB or troubleshooting a production issue, we are here to assist you every step of the way.

Packing and Shipping:

Product Packaging:

• The High Layer PCB product will be packaged in a sturdy cardboard box to ensure safe transportation.
• The PCB will be placed in an anti-static bag to prevent any damage from static electricity.
• The package will be sealed with durable tape to keep it secure during shipping.

Product Shipping:

• Once the order is confirmed, the High Layer PCB product will be shipped within 2-3 business days.
• The product will be shipped via a reliable courier service to ensure timely delivery.
• A tracking number will be provided to the customer to track the shipment status.

FAQ:

A: The High Layer PCB product can have up to 30 layers.

A: The standard copper thickness for the High Layer PCB product is 1oz.

A: The minimum trace width and spacing for the High Layer PCB product is 3mil.

A: The maximum board size available for the High Layer PCB product is 20 inches by 20 inches.

A: The lead time for the High Layer PCB product is typically 5-7 business days.
