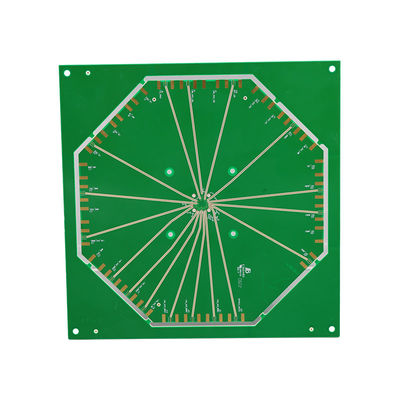

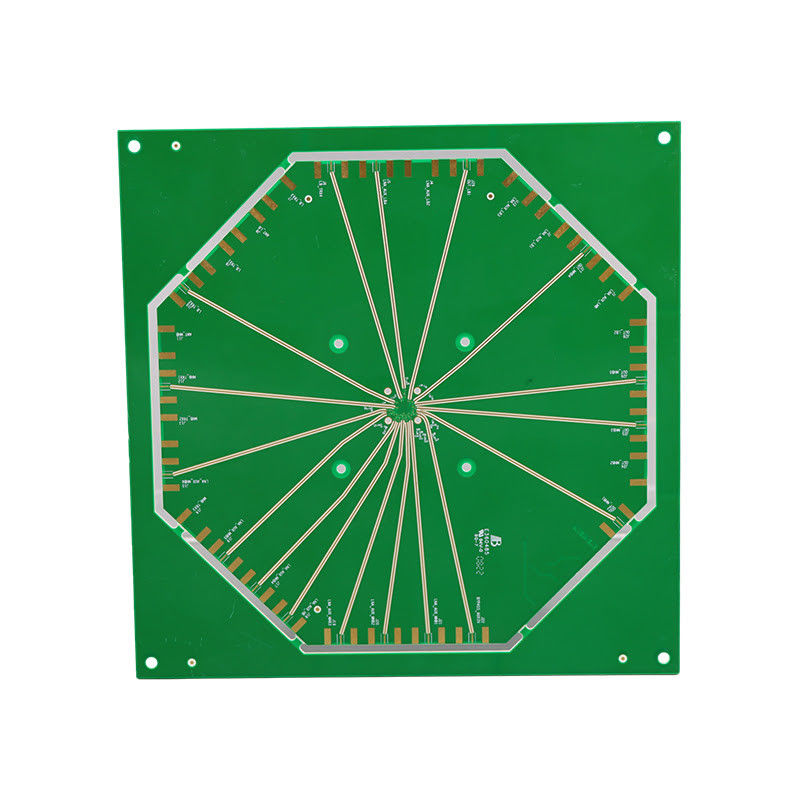

Fiberglass Consumer Electronics PCB Electronic Computer Multilayer PCB Board

Place of Origin Shenzhen, China
Brand Name Ben Qiang
Certification ISO/TS16949/RoHS/TS16949
Model Number FR-4/Rogers
Minimum Order Quantity 1PCS
Price custom made
Packaging Details Air bead vacuum packaging
Delivery Time 3-7 days delivery
Payment Terms Bank Transfer/Alipay/PayPal
Supply Ability 200,000 square meters/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Silkscreen Color White, Black, Yellow Surface Finish HASL, ENIG, Immersion Silver, OSP
Min. Solder Mask Clearance 0.1mm Type Printed Circuit Board
Min. Silkscreen Clearance 0.15mm Material Fiberglass, Copper
Solder Mask Color Green, Red, Blue, Black, White Min. Hole Size 0.15mm
High Light

Fiberglass Consumer Electronics PCB

,

Consumer Electronics PCB Computer

,

Electronic Computer Multilayer PCB Board

Leave a Message
Product Description

Red Electronic Computer PCB with 0.1mm Min. Solder Mask Clearance

Product Description:

Consumer Electronics PCB

Consumer Electronics PCB is a printed circuit board specially designed for electronic devices used by consumers. It is made of high-quality materials such as fiberglass and copper, ensuring durability and reliability for various consumer devices.

Material: Fiberglass and Copper

The base material of Consumer Electronics PCB is fiberglass, a type of reinforced plastic that is known for its strength and resistance to heat and chemicals. This material is then coated with a layer of copper, which is used to create the circuitry on the board. Copper is a highly conductive metal that is essential for the proper functioning of electronic devices.

Surface Finish: HASL, ENIG, Immersion Silver, OSP

Consumer Electronics PCB offers various surface finish options to meet different requirements. These include:

  • HASL (Hot Air Solder Leveling) - a cost-effective method that provides a flat surface for soldering components.
  • ENIG (Electroless Nickel Immersion Gold) - a more advanced finish that provides better corrosion resistance and solderability.
  • Immersion Silver - a finish that is suitable for high-frequency applications and offers excellent conductivity.
  • OSP (Organic Solderability Preservative) - a surface finish that is environmentally friendly and provides good solderability.
Type: Printed Circuit Board

Consumer Electronics PCB belongs to the category of printed circuit boards (PCBs), which are essential components of electronic devices. PCBs are used to connect and support electronic components, providing a stable and reliable platform for the device to function.

Thickness: 0.2mm-6.0mm

The thickness of Consumer Electronics PCB can range from 0.2mm to 6.0mm, depending on the specific needs of the device. A thinner board is suitable for compact devices, while a thicker board can provide more strength and stability for larger devices.

Min. Hole Size: 0.2mm

The minimum hole size of Consumer Electronics PCB is 0.2mm, allowing for precise and accurate placement of components. This ensures the smooth flow of electricity and the proper functioning of the device.

Overall, Consumer Electronics PCB is a crucial component in the manufacturing of various consumer devices such as electroplate computers, electronic computer cards, and electronic computer printed circuit boards. Its high-quality materials, surface finish options, and customizable thickness make it the ideal choice for reliable and efficient consumer electronics.



Features:

  • Product Name: Consumer Electronics PCB
  • Type: Printed Circuit Board
  • Min. Hole Size: 0.15mm
  • Min. Solder Mask Bridge: 0.08mm
  • Min. Solder Mask Clearance: 0.1mm
  • Surface Finish:
    • HASL
    • ENIG
    • Immersion Silver
    • OSP
  • Features:
    • High-quality electronic circuit core board
    • Designed for use in consumer electronics
    • Optimized for household electric device panels
    • Can support a minimum solder mask bridge of 0.08mm
    • Offers a variety of surface finish options, including HASL, ENIG, Immersion Silver, and OSP
    • Provides a minimum solder mask clearance of 0.1mm
    • Compatible with a minimum hole size of 0.2mm


Technical Parameters:

Product Name Consumer Electronics PCB
Max. Panel Size 600mm X 1200mm
Material Fiberglass, Copper
Copper Thickness 1oz-6oz
Solder Mask Color Green, Red, Blue, Black, White
Type Printed Circuit Board
Min. Trace Width/Spacing 0.1mm/0.1mm
Min. Hole Size 0.15mm
Min. Solder Mask Clearance 0.1mm
Layers Single, Double, Multi-layer
Surface Finish HASL, ENIG, Immersion Silver, OSP
Keyword Client Electronic Component PCB, Commercial Electronics Motherboard, Consumer Device Electroplate Computer Card


Applications:

Retail Electronic Graphics Hard Board: Consumer Electronics PCB

The Consumer Electronics PCB is a crucial component in many electronic devices, providing the necessary circuitry for the device to function properly. It is a type of printed circuit board (PCB) that is specifically designed for use in consumer electronics, such as computers, smartphones, and other electronic devices.

Product Attributes:
  • Thickness: 0.2mm-6.0mm
  • Solder Mask Color: Green, Red, Blue, Black, White
  • Surface Finish: HASL, ENIG, Immersion Silver, OSP
  • Min. Solder Mask Clearance: 0.1mm
  • Min. Hole Size: 0.2mm

The Consumer Electronics PCB is a versatile and highly customizable product, with a wide range of specifications and features to meet the specific needs of different electronic devices. Its main purpose is to provide a stable and reliable platform for the electronic components to be mounted on, ensuring the proper functioning of the device.

Application Scenarios:
  • Customer Electronics Circuit Core Board: The Consumer Electronics PCB is commonly used in the production of customer electronics circuit core boards, which are the main control boards for electronic devices. These boards are responsible for the overall functioning of the device and require a high-quality PCB to ensure the stability and reliability of the device.
  • Consumer Device Electroplate Computer Card: Another common application of the Consumer Electronics PCB is in the production of consumer device electroplate computer cards. These cards are used in a variety of electronic devices, such as laptops, tablets, and gaming consoles, to provide the necessary circuitry for their operation.
  • Retail Electronic Graphics Hard Board: The Consumer Electronics PCB is also widely used in retail electronic graphics hard boards, which are used for displaying and promoting electronic devices in retail stores. These boards require a high-quality PCB to ensure the proper functioning of the electronic devices on display.
Product Specifications:
Product Type Thickness Solder Mask Color Surface Finish Min. Solder Mask Clearance Min. Hole Size
Consumer Electronics PCB 0.2mm-6.0mm Green HASL 0.1mm 0.15mm
Consumer Electronics PCB 0.2mm-6.0mm Red ENIG 0.1mm 0.15mm
Consumer Electronics PCB 0.2mm-6.0mm Blue Immersion Silver 0.1mm 0.15mm
Consumer Electronics PCB 0.2mm-6.0mm Black OSP 0.1mm 0.15mm
Consumer Electronics PCB 0.2mm-6.0mm White HASL 0.1mm 0.15mm

With its various specifications and features, the Consumer Electronics PCB is suitable for a wide range of electronic devices, making it an essential component in the consumer electronics industry. Its high-quality materials and precise manufacturing process ensure the stability and reliability of electronic devices, making it a popular choice among manufacturers and consumers alike.



Customization:

Consumer Electronics PCB Customization Service
Overview

Our custom PCB service offers tailored solutions for your specific needs. We specialize in providing high-quality End User Device Circuit Plates, Home Electronic Device Mother Plates, and Client Electronic Component PCBs with customizable features to meet your unique requirements.

Product Attributes
  • Min. Silkscreen Clearance: 0.15mm
  • Max. Panel Size: 600mm X 1200mm
  • Solder Mask Color:
    • Green
    • Red
    • Blue
    • Black
    • White
  • Surface Finish:
    • HASL
    • ENIG
    • Immersion Silver
    • OSP
  • Min. Hole Size: 0.15mm
Customization Options

Our experienced team can work with you to customize the following aspects of your PCB:

  • Size and shape
  • Number of layers
  • Materials used
  • Thickness and weight
  • Solder mask color
  • Surface finish
  • Silkscreen design and placement
  • Hole size and placement
  • Panelization options
Benefits of Customization

By choosing our custom PCB service, you can enjoy the following benefits:

  • Tailored solution for your specific needs
  • High-quality and reliable products
  • Flexibility in design and functionality
  • Improved efficiency and cost-effectiveness
  • Expert support and guidance
Get Started

Contact us today to discuss your custom PCB needs and get a quote for your project. Our team of experts is ready to help you bring your ideas to life.



Packing and Shipping:

Packaging and Shipping for Consumer Electronics PCB
Packaging:

Our Consumer Electronics PCBs are carefully packaged to ensure safe delivery to our customers. Each PCB is first placed in an anti-static bag to protect it from any electrostatic discharge. It is then placed in a sturdy cardboard box with additional padding to prevent any damage during shipping. Our packaging is designed to withstand various handling and transportation conditions, ensuring that your PCB arrives in perfect condition.

Shipping:

We offer flexible shipping options to accommodate our customers' needs. Our standard shipping method is through trusted carriers such as UPS, FedEx, or DHL. We also offer expedited shipping for urgent orders. For international orders, we work with customs and provide all necessary documentation to ensure smooth delivery. We take extra care in packing and labeling our shipments to minimize any potential delays or damages.

Once your order is shipped, we will provide you with a tracking number so you can monitor the progress of your delivery. Our goal is to provide a hassle-free and efficient shipping process, so you can receive your Consumer Electronics PCBs in a timely manner.

For any special shipping requests or inquiries, please don't hesitate to contact us. We are happy to work with you to find the best shipping solution for your specific needs.
