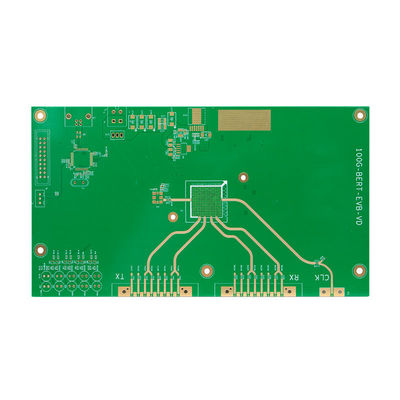

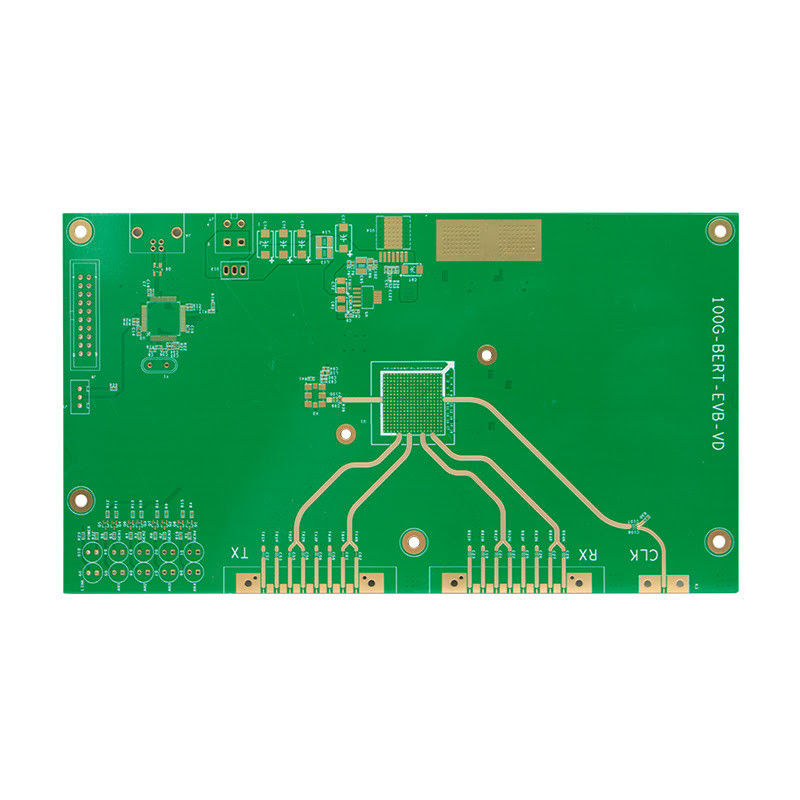

Rohs PCB Copper Board High current capacity Copper Thickness 3oz

Product Description:

Features:

• Product Name: Thick copper power PCB
• Copper Thickness: 3oz
• Surface Finish: ENIG
• Maximum Panel Size: 600mm X 600mm
• Minimum Trace Spacing: 0.2mm
• Impedance Control: Yes
• Extra thick power copper laminate
• Durable copper power printed board
• High heat dissipation capability
• Reliable electrical performance

Technical Parameters:

Applications:

The Thick Copper Power PCB is a heavy gauge copper power printed circuit board that is designed for high current applications and high power electronic devices. It is widely used in various industries such as automotive, aerospace, renewable energy, and many others.

This PCB is made with an extra thick power copper laminate that ensures optimum performance even under high current and high voltage conditions. The copper layer is much thicker than a standard PCB, providing a low-resistance path for high power applications.

The Thick Copper Power PCB is designed to withstand high temperatures and has high mechanical strength, making it suitable for applications that require high power and high temperature resistance. It can handle heavy loads without any risk of failure, ensuring reliable and long-lasting performance.

With a minimum trace spacing of 0.2mm, this PCB is ideal for high density circuits where components are placed close together. The close spacing of traces allows for more efficient routing of signals and reduces the chances of signal interference or crosstalk.

The Thick Copper Power PCB has a surface finish of ENIG, which is a widely used surface finish in the industry. It provides excellent solderability and ensures a strong and reliable bond between components and the PCB.

This PCB also has a minimum trace width of 0.2mm, which allows for precision circuitry and high-density routing. The narrow trace width allows for more components to be placed on the PCB, making it ideal for complex and high-performance electronic devices.

The Thick Copper Power PCB features a silkscreen color of white, which provides a clear and accurate labeling of components on the PCB. This makes it easier for technicians to identify and troubleshoot any issues that may arise during the production or assembly process.

The Thick Copper Power PCB has a minimum hole size of 0.3mm, making it suitable for larger and heavier components. The larger hole size provides stronger anchoring points for components, ensuring better stability and durability of the PCB.

The Thick Copper Power PCB is a reliable and durable solution for high power applications in various industries. With its extra thick power copper laminate, high temperature resistance, and high mechanical strength, it is the perfect choice for demanding electronic devices that require a robust and high-performance PCB.

Customization:

Product Attributes:

• Minimum Hole Size: 0.3mm
• Solder Mask Color: Green
• Silkscreen Color: White
• Minimum Trace Width: 0.2mm
• Maximum Panel Size: 600mm X 600mm

Key Features:

• Robust Copper Core Power Board
• Durable Copper Power Printed Board
• High Current Capacity Copper PCB

Packing and Shipping:

Thank you for choosing our Thick Copper Power PCB. To ensure the safe delivery of your product, we have carefully packaged it in the following way:

• The PCB is first wrapped in anti-static bubble wrap to protect it from any potential electrostatic damage during shipping.
• It is then placed in a sturdy cardboard box with ample padding to prevent any physical damage during transit.
• The box is sealed with high-quality tape to secure the contents inside.
• The shipping label is clearly marked with the necessary information, including your address and the tracking number.

We use trusted shipping carriers to deliver your product, ensuring timely and reliable delivery. The estimated shipping time will be provided to you upon checkout.

If you have any special packaging or shipping requests, please let us know in advance and we will do our best to accommodate your needs.

Thank you for choosing our Thick Copper Power PCB. We hope you are satisfied with our packaging and shipping methods. Please do not hesitate to contact us if you have any further questions or concerns.
