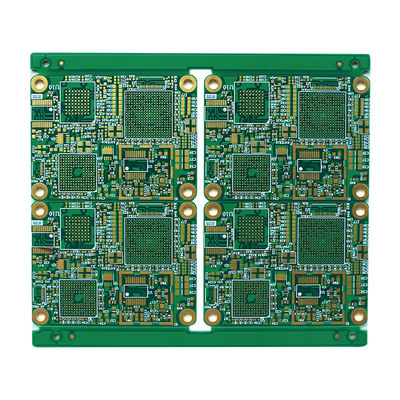

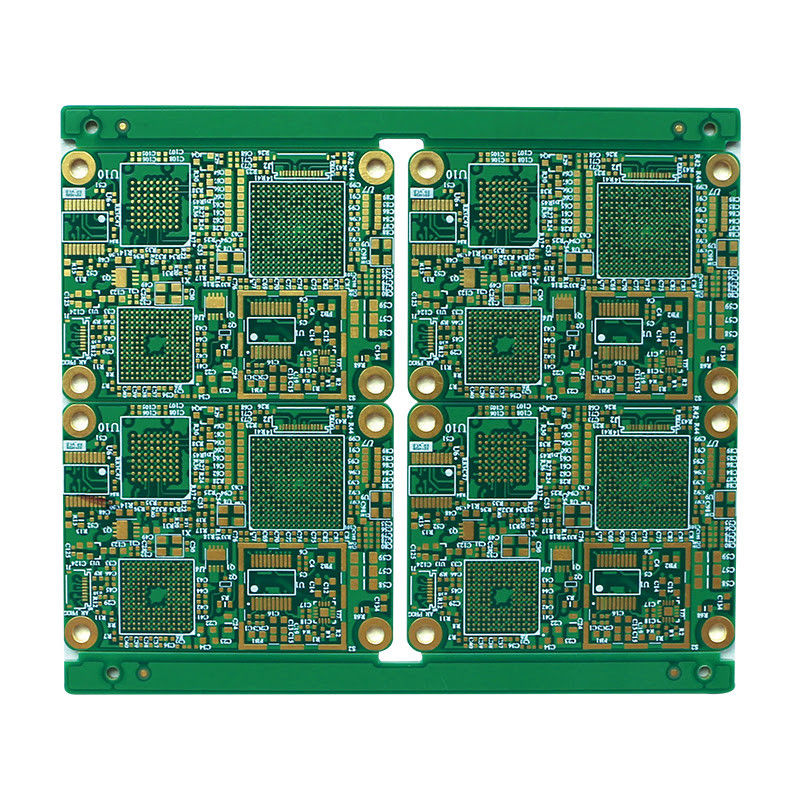

16L Industrial Control PCB 7+N+7 HDI Circuit Board 1.8 Thickness

  • 16L Industrial Control PCB 7+N+7 HDI Circuit Board 1.8 Thickness
Place of Origin Shenzhen, China
Brand Name Ben Qiang
Certification ISO/TS16949/RoHS/TS16949
Model Number FR-4/Rogers
Minimum Order Quantity 1PCS
Price custom made
Packaging Details Air bead vacuum packaging
Delivery Time 3-7 days delivery
Payment Terms Bank Transfer/Alipay/PayPal
Supply Ability 200,000 square meters/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Industrial Controls Characteristic 7 Lasers, 7 Presses, 7+N+7 HDI Boards
Material S1000-2m Layer 16L
Thickness 1.8±0.18mm Min Hole Diameterv Laser Hole: 0.1mm, Mechanical 0.2mn, Aperture Ratio 9:1
Min Width/space 100/100um Surface Finish Immersion Gold: 0.05um
Internal Model C654004C16
High Light

16L Industrial Control PCB

,

Industrial Control PCB 7 N 7

,

7 N 7 Hdi Circuit Board
Leave a Message
Product Description

7+N+7 HDI board

Project PCB process capability
Layer count 1-40 Layers
Min outer line width/space 3/3mil
Outer copper thickness 280um(8OZ)
Inner copper thickness 210um(6OZ)
Tolerance of PCB thickness board thickness≤1.0mm; ±0.1mm,+/-0.05mm below 4 layers
board thickness＞1.0mm; ±10%
Minimum PTH Mechanical hole 4mil, laser 3mil
Material FR-4 ,High Tg ,Halogen-free ,PTFE ,Rogers,Polyimide
HDI Levels 2-7
Special Process

Buried blind vias, blind slots, rigid-flex combination,mixed pressure, back drilling, buried resistance,buriedcapacitance, milling steps, multi-combination impedance;
