Ben Qiang Semiconductor PCB 10-Layer Mechanical Hole 4mil Laser 3mil

  • Ben Qiang Semiconductor PCB 10-Layer Mechanical Hole 4mil Laser 3mil
Place of Origin Shenzhen, China
Brand Name Ben Qiang
Certification ISO/TS16949/RoHS/TS16949
Model Number FR-4/Rogers
Minimum Order Quantity 1PCS
Price custom made
Packaging Details Air bead vacuum packaging
Delivery Time 3-7 days delivery
Payment Terms Bank Transfer/Alipay/PayPal
Supply Ability 200,000 square meters/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Semiconductor Testing Characteristic Aperture Ratio 25:1
Material S1000-2M Layer 10L
Thickness 5.0±0.5mm Min Hole Diameterv 0.2 Mm
Min Width/space 100/100um Surface Finish Gold Plated 5u"
Internal Model C16751G10
High Light

Ben Qiang Semiconductor PCB

,

Semiconductor PCB 10-Layer
Leave a Message
Product Description

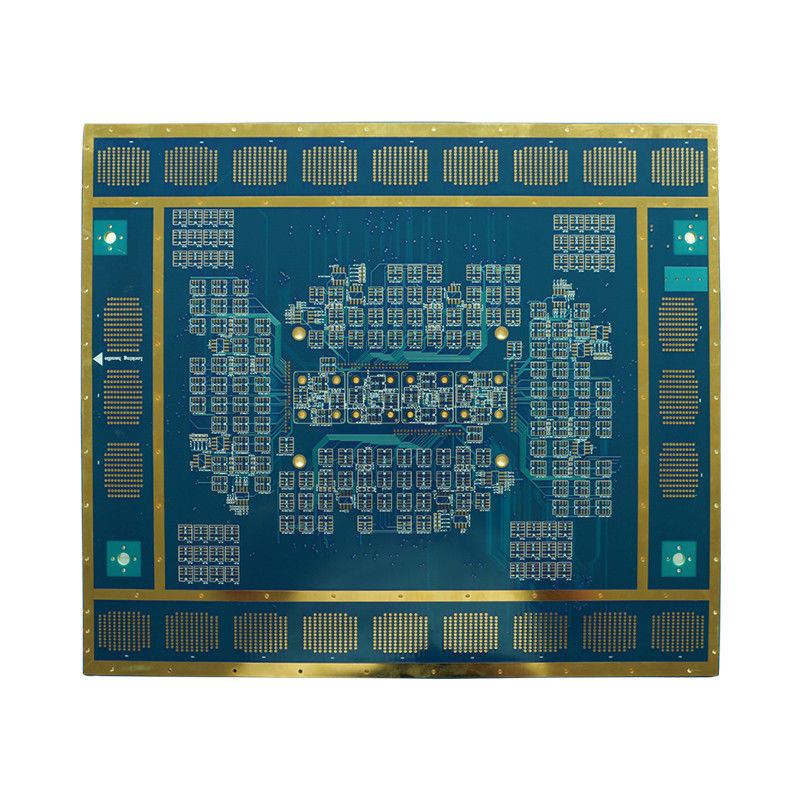

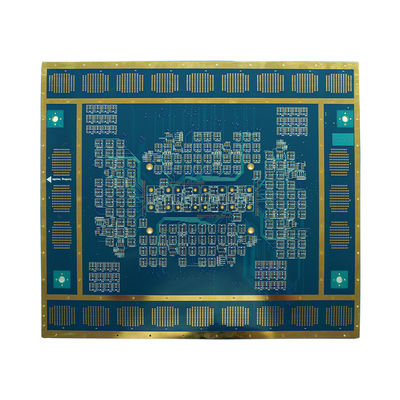

10-Layer Semiconductor Test Board

Project PCB process capability
Layer count 1-40 Layers
Min outer line width/space 3/3mil
Outer copper thickness 280um(8OZ)
Inner copper thickness 210um(6OZ)
Tolerance of PCB thickness board thickness≤1.0mm; ±0.1mm,+/-0.05mm below 4 layers
board thickness＞1.0mm; ±10%
Minimum PTH Mechanical hole 4mil, laser 3mil
Material FR-4 ,High Tg ,Halogen-free ,PTFE ,Rogers,Polyimide
HDI Levels 2-7
Special Process

Buried blind vias, blind slots, rigid-flex combination,mixed pressure, back drilling, buried resistance,buriedcapacitance, milling steps, multi-combination impedance;
