Printed Circuit Board Assembly Copper Thickness 1-3oz 8oz FR4 Precision Electronic Production

Product Description:

The PCBA Board Assembly product offers a comprehensive and reliable solution for various electronic manufacturing needs, designed to meet the highest standards of quality and efficiency. This product is fully RoHS compliant, ensuring that it adheres to strict environmental regulations by limiting the use of hazardous substances in the manufacturing process. This compliance not only guarantees safety and sustainability but also aligns with global standards, making it suitable for industrial applications worldwide.

Constructed using premium FR4 material, the PCBA Board Assembly provides exceptional durability, electrical insulation, and mechanical strength. FR4 is a widely recognized substrate material in the electronics industry, known for its excellent flame resistance and stable performance under a variety of environmental conditions. The use of FR4 ensures that the assembled boards are robust, reliable, and capable of withstanding demanding industrial environments.

This product caters to a broad range of requirements with its versatile board thickness options, ranging from 0.4mm to 3.2mm. This flexibility allows for customization based on specific project needs, whether for compact designs requiring thin boards or more robust solutions necessitating thicker substrates. Such adaptability is essential for catering to diverse applications in sectors such as telecommunications, automotive, medical devices, and consumer electronics.

One of the standout features of this PCBA Board Assembly is its capability to support Through Hole PCBA Assembly techniques. Through hole technology is crucial for components that require strong mechanical bonds to the board, offering enhanced durability and stability. This makes the product ideal for applications where reliability under mechanical stress is paramount. Combined with surface mount technology, this product provides a comprehensive assembly solution that meets the complex requirements of modern electronic devices.

In addition to through hole technology, this product is designed for Industrial PCB Board Assembly, making it suitable for large-scale manufacturing environments. The assembly process is optimized for efficiency and quality, ensuring that every board is meticulously constructed to meet industrial-grade specifications. This ensures that the final products are not only functional but also capable of performing reliably in rigorous operational conditions.

Customization is at the heart of this PCBA Board Assembly offering. The product supports Custom PCB Assembly Solutions tailored to specific client needs, allowing for unique configurations, special materials, and tailored assembly processes. Whether you require specific component placements, unique board sizes, or specialized testing and quality assurance protocols, this product can be adapted to fulfill those requirements. This level of customization is particularly beneficial for innovators and businesses looking to bring unique electronic products to market efficiently.

The lead time for this product is designed to balance speed and quality. With a standard lead time of 7-15 days, it ensures thorough quality checks and precise assembly processes. For clients with more urgent needs, an expedited lead time of 3-5 working days is also available, providing flexibility to meet tight project deadlines without compromising on quality. This responsiveness is essential for industries where time-to-market can be a critical factor in success.

Overall, the PCBA Board Assembly product is a versatile, high-quality solution that combines RoHS compliance, durable FR4 material, and flexible board thickness options with advanced assembly techniques like Through Hole PCBA Assembly. It is perfectly suited for Industrial PCB Board Assembly applications and offers comprehensive Custom PCB Assembly Solutions. Whether you are developing cutting-edge electronic devices or maintaining large-scale production lines, this product provides the reliability, quality, and customization you need to succeed in today’s competitive electronics market.

Features:

• Product Name: PCBA Board Assembly
• Board Thickness: 0.1mm-10.0mm
• Testing Method: AOI, X-Ray, Functional Test
• Soldering Method: Reflow Soldering and Wave Soldering
• Lead Time: 3-5 Working Days
• Material: FR4
• Custom PCB Assembly Solutions tailored to your specific requirements
• Advanced PCB Assembly Services ensuring high quality and reliability
• Expertise in providing Custom PCB Assembly Solutions for diverse applications

Technical Parameters:

Applications:

The PCBA Board Assembly, offered by Support OEM, is a highly reliable and versatile product designed to meet diverse electronic manufacturing needs. Originating from Shenzhen, China, this product comes with multiple certifications including ISO9001, ISO14001, UL, and IATF16949, ensuring top-notch quality and compliance with international standards. With a minimum order quantity of just 1 unit and negotiable pricing, it caters to both small-scale and large-scale production requirements. The packaging details include vacuum packaging combined with a sturdy carton box, guaranteeing the protection of sensitive electronic components during transit.

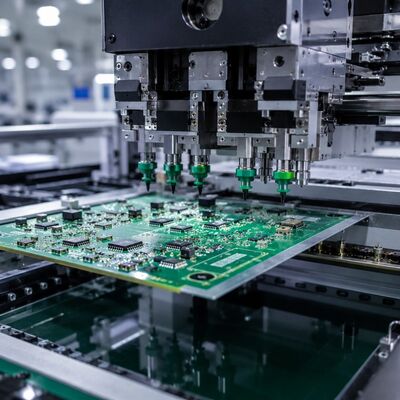

This PCBA Board Assembly specializes in Surface Mount Technology Assembly, making it ideal for modern electronics that demand compact and efficient circuit designs. The assembly process supports both reflow soldering and wave soldering methods, accommodating various component types and production preferences. The board thickness ranges from 0.4mm to 3.2mm, with copper thickness options between 1/3oz and 8oz, allowing customization based on electrical and mechanical requirements. Its RoHS compliance ensures that the product is environmentally friendly and safe for consumer use.

Advanced PCB Assembly Services provided by Support OEM enable the PCBA Board Assembly to be used in a wide array of application occasions and scenarios. It is perfect for high-precision electronics manufacturing in industries such as telecommunications, automotive electronics, medical devices, consumer electronics, industrial control systems, and aerospace technology. Whether it is for prototyping or full-scale production, the assembly supports quick turnaround with delivery times of 7–8 working days for 2-layer boards and 10–15 working days for multi-layer boards. The supply ability of 20,000 square meters per month ensures that large volume orders can be fulfilled efficiently.

Additionally, the PCBA Board Assembly is suitable for scenarios requiring stringent quality control and reliability, such as safety-critical systems in automotive and medical fields. Its compatibility with Surface Mount Technology Assembly makes it ideal for compact and high-density circuit designs used in smartphones, tablets, and wearable devices. The product’s flexibility in payment terms, including Western Union and T/T, also facilitates smooth transactions for international customers. Overall, this PCBA Board Assembly is an excellent choice for manufacturers seeking advanced, reliable, and customizable PCB assembly solutions.

Support and Services:

Our Product Technical Support and Services for the PCBA Board Assembly product are designed to ensure optimal performance and customer satisfaction. We offer comprehensive assistance including troubleshooting, design consultation, and firmware updates to help you maximize the efficiency of your PCBA assemblies.

Our technical support team is available to guide you through installation, configuration, and integration processes, ensuring seamless operation within your systems. We also provide detailed documentation and application notes to support your engineering and production needs.

In addition, we offer repair and maintenance services to extend the lifespan of your PCBA boards. Our quality assurance processes guarantee that all assemblies meet stringent industry standards and specifications.

For custom requirements, our engineering team can collaborate with you to develop tailored solutions that meet your specific project goals. We are committed to delivering reliable, high-quality PCBA assemblies backed by expert support throughout the product lifecycle.

FAQ:

Q1: What is the brand name and model number of the PCBA Board Assembly?

A1: The brand name supports OEM, and the model number is PCBA Board Assembly.

Q2: Where is the PCBA Board Assembly manufactured?

A2: The PCBA Board Assembly is manufactured in Shenzhen, China.

Q3: What certifications does the PCBA Board Assembly have?

A3: The product is certified with ISO9001, ISO14001, UL, and IATF16949.

Q4: What is the minimum order quantity and price terms?

A4: The minimum order quantity is 1 unit, and the price is negotiable.

Q5: What are the packaging and delivery time details for the PCBA Board Assembly?

A5: The product is packaged in a vacuum package plus a carton box. Delivery time is 7–8 working days for 2-layer boards and 10–15 working days for multi-layer boards.

Q6: What payment methods are accepted?

A6: We accept Western Union and T/T as payment methods.

Q7: What is your supply capacity for PCBA Board Assembly?

A7: Our supply ability is 20,000 square meters per month.
