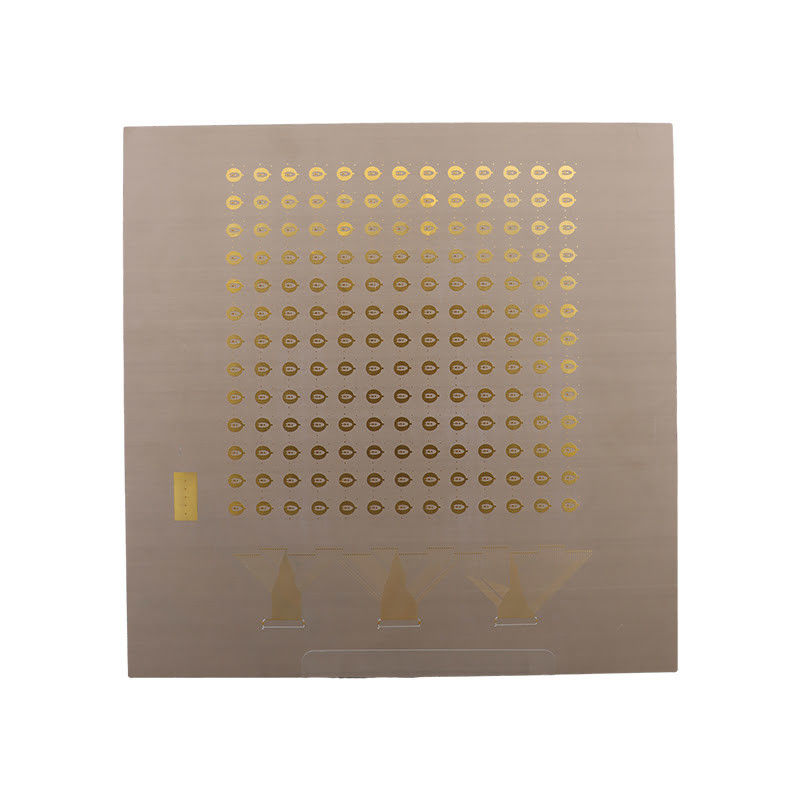

High Frequency PCB Impedance Value ±10% / Rohs Compliant Yes for Benefit

Product Description:

The High Frequency PCB is a type of high-speed printed wiring board designed for use in various applications, with a focus on automotive communication. This product utilizes advanced materials and techniques to ensure efficient and reliable performance, making it an ideal choice for demanding electronic designs.

The High Frequency PCB has a board thickness of 1.0MM, providing a sturdy and durable base for complex electronic designs. This thickness is carefully chosen to meet the needs of high-frequency applications, balancing strength and flexibility to deliver optimal performance.

One of the key features of the High Frequency PCB is its exceptional impedance control. With a tolerance of ±10%, this product ensures consistent signal integrity and eliminates the risk of impedance mismatch. This is especially important for high-frequency microstrip PCBs, where even small variations in impedance can cause significant signal degradation.

The High Frequency PCB is made from the highest quality Rogers/PTFE material, known for its excellent dielectric properties and low loss tangent. This material is specifically chosen for its ability to handle high frequencies and provide reliable performance in demanding environments. It also offers excellent thermal stability, making it suitable for use in automotive applications.

The High Frequency PCB is designed for use in automotive communication systems, where high-speed and high-frequency signals are critical for efficient and safe operation. This product is ideal for applications such as GPS, radar, and other wireless communication systems, providing reliable and consistent performance even in harsh conditions.

The High Frequency PCB features a 1 Oz copper foil as its final layer. This foil offers excellent electrical conductivity and thermal properties, making it well-suited for high-frequency applications. It also provides good mechanical strength and can withstand high temperatures, ensuring the longevity and reliability of the product.

In summary, the High Frequency PCB is a high-quality and high-performance product designed for use in demanding automotive communication applications. With its advanced materials, precise impedance control, and sturdy construction, this product offers exceptional performance and reliability for high-frequency designs.

Features:

• Product Name: High Frequency PCB
• Board Thk: 1.0MM
• Final Foil: 1 Oz
• Material: Rogers/PTFE
• Surface Finished: Immersion Gold
• Board Thickness: 0.2mm-6.35mm
• High-speed PCB
• High-Frequency Microstrip PCB
• High-Frequency Radio-frequency PCB

Technical Parameters:

Applications:

High Frequency PCB, also known as High-speed PCB, is a type of circuit board that is specifically designed for high-speed signal transmission. It is widely used in various applications, including communication and automotive industries.

High Frequency PCB is made of high-quality materials, such as Rogers or PTFE, which are known for their excellent dielectric properties. These materials are ideal for high-frequency applications as they provide low loss and high stability, ensuring reliable signal transmission.

High Frequency PCB is widely used in the communication and automotive industries. In the communication industry, it is used in various devices, such as routers, switches, and high-speed servers, to ensure fast and efficient data transmission. In the automotive industry, it is used in electronic control units, satellite navigation systems, and other electronic components to ensure reliable communication and data transfer.

High Frequency PCB is finished with ENIG (Electroless Nickel Immersion Gold), which is a popular surface finish for high-speed PCBs. ENIG provides a flat and smooth surface, which is essential for high-speed signal transmission. It also offers excellent solderability and corrosion resistance, making it ideal for various applications.

High Frequency PCB has a minimum hole size of 0.2mm, which is essential for high-speed signal transmission. With smaller holes, the distance between the traces can be reduced, reducing the risk of interference and ensuring efficient signal transmission.

High Frequency PCB has a copper thickness of 1 Oz, which is the standard thickness for high-speed PCBs. This thickness provides the right amount of copper for efficient signal transmission without causing any impedance issues. It also enables better heat dissipation, ensuring the stability of the circuit board.

High Frequency PCB requires a specialized design that takes into account various factors, such as trace width, distance between traces, and impedance control, to ensure efficient signal transmission. High-speed PCB design also involves the use of advanced simulation and analysis tools to validate the design and ensure its functionality.

High Frequency PCB is specifically designed for high-speed signal transmission, which is essential in today's technological world. With the increasing demand for faster data transfer, High Frequency PCB plays a crucial role in ensuring reliable and efficient communication in various industries, making it an essential product in today's market.

Customization:

Our High Frequency PCB is a specialized product designed to meet the demands of high-speed and high-frequency applications. With its premium quality materials and advanced manufacturing processes, this PCB offers exceptional performance and reliability for your electronic devices.

• Final Foil: 1 Oz
• Minimum Hole Size: 0.2mm
• Outline: Rout and Score
• Board Thickness: 0.2mm-6.35mm
• Operating Temperature: -55℃ to 125℃

Our High Frequency PCB is specifically designed to handle high-frequency signals, making it suitable for applications that require a fast and stable transmission of data. With a final foil weight of 1 Oz, this PCB ensures low loss and excellent signal integrity, even at high frequencies.

The minimum hole size of 0.2mm allows for precise and accurate drilling, ensuring that all components are securely and precisely mounted on the PCB. The outline of the PCB is created through rout and score processes, providing a smooth and clean finish for your customized design.

We offer a wide range of board thickness options, ranging from 0.2mm to 6.35mm, to cater to your specific needs and requirements. Our High Frequency PCB is designed to operate in extreme temperatures, with a working range of -55℃ to 125℃, ensuring its durability and reliability in harsh environments.

At our company, we understand that every project is unique and requires a customized solution. That's why we offer a comprehensive customization service for our High Frequency PCB, allowing you to tailor the product to your specific needs. Our experienced team of engineers will work closely with you to design and manufacture a PCB that meets your exact specifications and requirements.

With our High Frequency Signal PCB and High-Frequency Microstrip PCB capabilities, we can provide you with a customized solution for your high-speed and high-frequency applications. Contact us today to learn more about our customization service and how we can help you achieve your goals with our High Frequency PCB.

Packing and Shipping:

Our High Frequency PCBs are carefully packaged and shipped to ensure safe delivery to our customers. Each step of our packaging and shipping process is designed to protect the integrity of the product and minimize any potential damage during transportation.

Before shipping, our High Frequency PCBs are first placed in anti-static bags to prevent any static interference. They are then placed in custom-sized boxes with foam padding to provide additional protection during transit.

We also offer custom packaging options, such as vacuum-sealed packaging or moisture-resistant packaging, upon request.

We offer a variety of shipping options to accommodate the needs of our customers. Our standard shipping method is via air or sea, depending on the size and weight of the order.

We also offer expedited shipping options for urgent orders. Please contact us for more information and pricing.

Along with the High Frequency PCBs, we provide all necessary shipping documents, including commercial invoices, packing lists, and bill of lading. We also offer certificate of origin and other certifications upon request.

Our team carefully prepares all shipping documents to ensure smooth customs clearance and timely delivery.

Thank you for choosing our High Frequency PCBs. We are committed to providing high-quality products and reliable shipping services. Please feel free to contact us with any questions or concerns regarding packaging and shipping.
