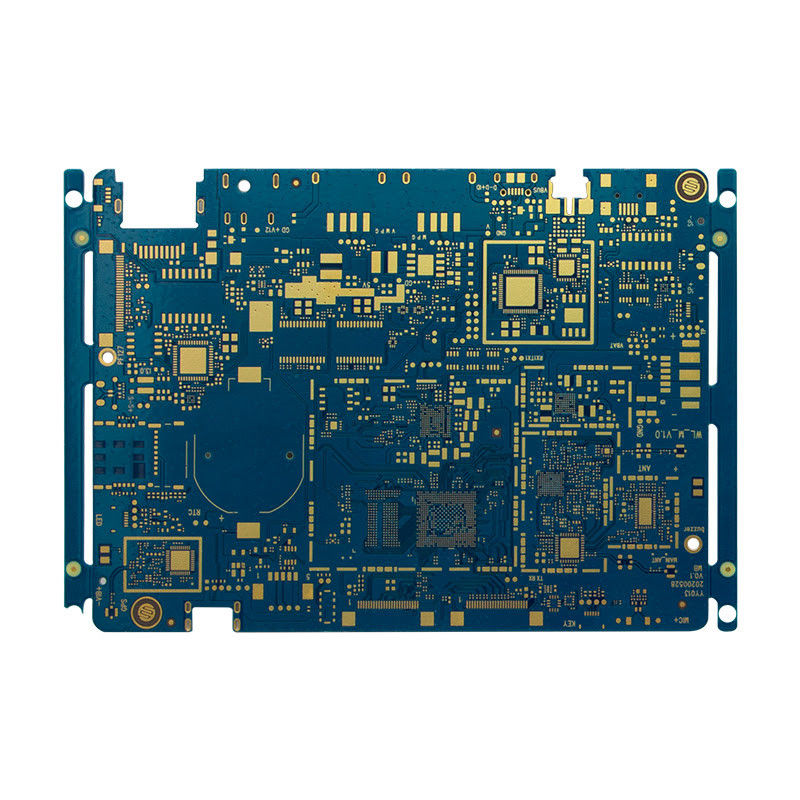

Immersion Gold High Frequency PCB ENIG For OEM Electronics

Product Description:

The High Frequency PCB, also known as the High-Frequency Signal PCB, is a specialized type of printed circuit board designed to handle high-frequency signals and operate in microwave frequencies. It is widely used in industries such as telecommunications, aerospace, and military for its ability to transmit and receive high-frequency signals with low loss and minimal interference.

This High-Frequency PCB is made with top-quality materials and advanced technology to ensure optimal performance. It features:

The surface finish of this High-Frequency PCB is Immersion Gold, also known as ENIG (Electroless Nickel Immersion Gold). This surface finish provides excellent corrosion resistance, solderability, and a flat, smooth surface for precise circuitry placement. It is ideal for high-frequency applications as it has a low insertion loss and maintains signal integrity even at high frequencies.

This High-Frequency PCB is designed to operate in a wide temperature range from -55℃ to 125℃. This makes it suitable for use in extreme environments and ensures reliable performance even in harsh conditions.

The board thickness of this High-Frequency PCB ranges from 0.2mm to 6.35mm, providing flexibility in design and compatibility with various electronic devices. It can be used in compact devices where space is limited or in larger systems that require thicker boards for more complex circuits.

The material used for this High-Frequency PCB is either Rogers or PTFE (Polytetrafluoroethylene). Both materials have excellent dielectric properties, low loss tangent, and high thermal stability, making them suitable for high-frequency applications. Rogers is a high-performance laminate, while PTFE is a fluoropolymer with superior electrical and mechanical properties.

This High-Frequency PCB has a final copper foil thickness of 1 Oz (ounce) or 35 microns. A thicker copper foil helps to reduce signal loss and improve signal quality, making it suitable for high-frequency and high-speed applications.

There are four main types of High-Frequency PCB that are commonly used:

This type of High-Frequency PCB is designed for controlled impedance applications and is ideal for high-frequency signals that require precise routing and shielding. It has a sandwich structure with a signal layer in the middle and ground planes on the top and bottom, providing excellent signal isolation and minimizing crosstalk.

The High-Frequency Microstrip PCB is the most commonly used type, with a single layer of conductive traces on the top of the dielectric material. The bottom layer acts as a ground plane, and the top layer carries the signal. It is suitable for applications that require low cost and high volume production.

This type of High-Frequency PCB is similar to the Microstrip, but it has additional ground planes on both sides of the signal trace, providing better signal isolation and reducing radiation. It is commonly used in high-frequency and high-speed digital applications.

The High-Frequency Embedded PCB is a specialized type that uses a dielectric material with a lower dielectric constant, such as PTFE, to embed the signal traces between two layers of ground planes. This design allows for a smaller form factor and improved electrical performance.

The High Frequency PCB is a critical component in the high-frequency and microwave industry, providing reliable and efficient transmission of signals. Its advanced features, such as Immersion Gold surface finish, Rogers/PTFE material, and 1 Oz final foil, make it an ideal choice for demanding applications. With its various types and customizable options, this High-Frequency PCB is a versatile solution for high-frequency circuitry needs.

Features:

• High-Frequency Printed Wiring Board
• High-Frequency Printed Circuit Board
• High Frequency PCB
• Rout And Score
• Application: Communicate
• Application: Automotive
• Surface Finished: Immersion Gold
• Copper Thickness: 1 Oz
• Operating Temperature: -55℃ To 125℃

Technical Parameters:

Applications:

With the constant evolution of technology, the need for high-frequency electronics has become essential in various industries. From aerospace to telecommunications, these high-frequency devices play a crucial role in ensuring efficient and reliable operations. This is where High Frequency PCB comes in, providing advanced solutions for high-frequency and microwave applications.

High Frequency PCB, also known as High-Frequency Radio-frequency PCB or High-Frequency Microwave PCB, is a type of printed circuit board designed specifically for high-frequency and microwave applications. With a frequency range of 500MHz to 2GHz, these PCBs use specialized materials and manufacturing processes to achieve fast signal transmission and low signal loss.

• Board Thickness: 0.2mm-6.35mm
• Outline: Rout And Score
• Board Thk: 1.0MM
• Minimum Hole Size: 0.2mm
• Usage: OEM Electronics

The high frequency and microwave capabilities of this product make it suitable for a wide range of applications, including:

• Telecommunications: High Frequency PCBs are extensively used in the telecommunications industry for devices such as antennas, satellite communication systems, transceivers, and more. These PCBs enable fast and stable signal transmission, ensuring reliable communication.
• Aerospace and Defense: With the increasing use of radar and satellite systems in the aerospace and defense sector, the demand for high-frequency electronics has also grown. High Frequency PCBs are crucial for these applications, providing high-speed data processing and transmission for efficient operations.
• Medical Equipment: High Frequency PCBs are also used in medical equipment such as MRI machines, ultrasound devices, and more. These PCBs ensure accurate and fast signal processing, enabling accurate diagnoses and treatments.
• Automotive Industry: With the rise of advanced driver-assistance systems (ADAS) and other high-frequency applications in the automotive industry, High Frequency PCBs are used to ensure fast and reliable data transmission, enhancing safety and performance.
• Industrial Control Systems: High Frequency PCBs are also used in various industrial control systems, such as PLC, DCS, and SCADA systems. These PCBs provide high-speed data processing and transmission, ensuring efficient and precise control over manufacturing processes.

High Frequency PCBs offer several advantages over traditional PCBs, making them the preferred choice for high-frequency and microwave applications:

• Low Signal Loss: The specialized materials and manufacturing processes used in High Frequency PCBs minimize signal loss, ensuring fast and stable signal transmission.
• High-Speed Data Processing: With a frequency range of 500MHz to 2GHz, High Frequency PCBs enable high-speed data processing, making them suitable for advanced applications.
• Durability: High Frequency PCBs are designed to withstand high temperatures and extreme environments, making them highly durable and reliable.
• Customization: These PCBs can be customized according to specific requirements, allowing for flexibility in design and functionality.

High Frequency PCBs have revolutionized the world of high-frequency electronics, providing advanced solutions for various industries. With their superior performance, durability, and customization options, these PCBs have become an essential component in modern technology.

Customization:

Our High Frequency PCB is a high-quality product designed for OEM electronics. It is specifically designed for use in high-frequency applications, making it perfect for High-Frequency Microstrip PCB, High-Frequency RF PCB, and High-Frequency Radio-frequency PCB projects.
The Final Foil of our High Frequency PCB is 1 Oz, ensuring its durability and reliability. The Surface Finishing is ENIG, providing excellent protection against corrosion and ensuring a long lifespan for your PCB. We understand the importance of precision in high-frequency applications, which is why our Impedance Value has a tolerance of ±10%. This guarantees the accuracy of your signals and minimizes interference.
Our High Frequency PCB also has a Minimum Hole Size of 0.2mm, allowing for intricate designs and precise placement of components. With our customization service, you can be sure that your PCB will meet your exact specifications and requirements.
Trust our High Frequency PCB to provide exceptional performance and reliability for all your high-frequency needs. Contact us now to learn more about our customization service and how we can help bring your project to life.
