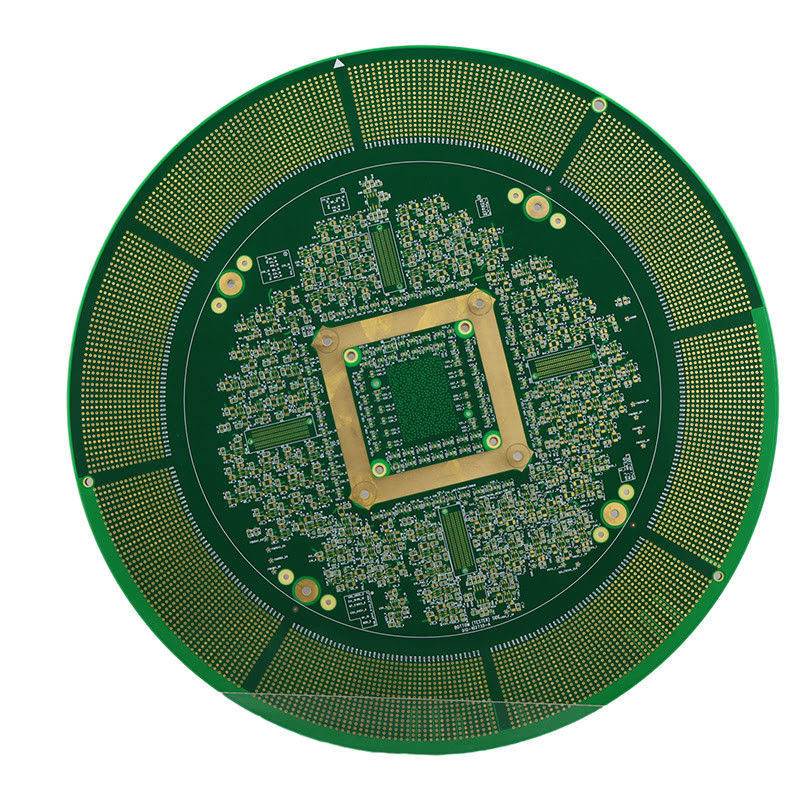

RO4350B Glass Epoxy HDI PCB Board For Aerospace And Defense

Product Description:

HDI PCB Board is a type of high-density multilayer PCB that utilizes advanced interconnect technology to achieve high-density interconnections on a single board. It is designed for applications that require high-speed signal transmission, compact size, and high reliability.

• High-Density Multilayer PCB: HDI PCB Board is designed with multiple layers of conductive materials, allowing for a higher density of interconnections compared to traditional PCBs.
• Advanced Interconnect Technology: The use of advanced interconnect technology allows for smaller and more precise connections, resulting in a more compact and efficient board design.
• High-Density Interconnector Technology: HDI PCB Board employs high-density interconnector technology to achieve a higher number of connections in a smaller area, making it ideal for high-speed and high-density applications.
• RO4350B Glass Epoxy Material: The PCB is made with RO4350B glass epoxy material from Rogers Corp, which has a high glass transition temperature of 280℃ and a low dielectric constant of less than 3.48, ensuring excellent thermal and electrical performance.
• Impedance Control: The HDI PCB Board is manufactured with strict impedance control to ensure consistent and accurate signal transmission, reducing the risk of signal distortion.
• 4L 1+N+1 Technology: This board features a 4-layer design with 1 signal layer, N power/ground layers, and 1 signal layer, allowing for high-density interconnections while maintaining good power distribution.
• Stencil Service: HDI PCB Board offers stencil service to ensure precise and efficient solder paste application during assembly, resulting in improved production quality and reliability.

The Pcb Name for this product is "4L 1+N+1 HDI Boards". It accurately reflects the board's 4-layer design and the use of 1 signal layer, N power/ground layers, and 1 signal layer.

HDI PCB Board is suitable for a wide range of applications, including but not limited to:

• High-speed communication systems
• Consumer electronics
• Medical equipment
• Aerospace and defense
• Automotive electronics
• Industrial control systems

HDI PCB Board offers a high-density interconnector solution for applications that require compact size, high-speed signal transmission, and high reliability. With advanced interconnect technology, strict impedance control, and the use of high-quality materials, it ensures excellent performance and can meet the demanding requirements of various industries.

Features:

• Product Name: HDI PCB Board
• Pcb Test: 100% Testing
• Surface Finishing: Chemical Nickel Palladium
• Silkscreen Color: White, Black, Yellow, Red, Blue, Etc.
• Number Of Layers: 6-Layer
• Key Words: High Density Interconnector
• Advanced Interconnect PCB
• High Density Interconnection Printed Circuit Board
• Microvia PCB Assembly
• High Density PCB Fabrication

Technical Parameters:

Applications:

The HDI PCB Board is a revolutionary product that caters to the needs of high-density interconnections in modern electronic devices. It is designed to handle complex and dense circuitry, making it an ideal choice for a variety of applications in different industries.

Let's take a closer look at some of the key features of this high-density interconnector PCB board:

• Number of Layers: 6
• Glass Epoxy: RO4350B Tg280℃, Er<3.48, Rogers Corp
• Process: Immersion Gold
• Key Words: High Density Interconnector
• PCB Test: 100% Testing

The High-Density PCB Board is built using the latest high-density interconnect technology, which allows for more complex and compact circuit designs. This technology utilizes microvias, blind and buried vias, and stacked vias to create a more efficient and reliable connection between PCB layers.

With this technology, the HDI PCB Board can achieve a higher number of connections and a smaller form factor, making it suitable for applications that require a smaller and thinner PCB design.

The HDI PCB Board is designed to meet the growing demand for smaller and more complex electronic devices. With its high-density PCB panel, this product can accommodate more components and connections in a smaller area, providing more functionality and performance in a compact form factor. This makes it a perfect fit for applications such as smartphones, tablets, wearables, and other portable electronic devices.

The HDI PCB Board is a multilayer PCB with six layers, allowing for a higher density of connections and components. This makes it an ideal choice for applications that require a high level of complexity, such as medical equipment, aerospace and defense systems, and automotive electronics.

Additionally, the use of RO4350B glass epoxy material with a high glass transition temperature (Tg280℃) and a low dielectric constant (Er<3.48) makes the HDI PCB Board highly reliable and durable, even in harsh environments.

The HDI PCB Board is a versatile product that offers a wide range of applications in various industries. Its high-density interconnect technology, multilayer design, and use of high-quality materials make it a reliable and efficient choice for complex and compact circuitry needs. With 100% testing, this product ensures high performance and quality, making it a top choice for modern electronic devices.

Customization:

The HDI PCB Board, short for High Density Interconnector PCB Board, is a type of printed circuit board that utilizes microvia technology to achieve high density interconnects. It is commonly used in advanced electronic products such as smartphones, tablets, and other compact devices.

• Pcb Thickness: 1.5mm
• Number of Layers: 6-Layer
• Surface Finishing: Chemical Nickel Palladium
• Board Size: 300 * 210mm
• Key Words: High Density Interconnector

At HDI PCB Board, we offer customized services to meet the specific needs of our clients. Our team of experienced engineers and technicians work closely with our customers to provide the best solutions for their projects. Our customized services include:

Design and Layout

We offer design and layout services for HDI printed wiring boards. Our team can work with your design specifications to create a customized HDI interconnect board that meets your requirements.

Material Selection

We have a wide range of materials available for HDI PCB boards, including high-quality substrates and laminates. Our experts can help you select the right materials for your project, taking into consideration factors such as cost, performance, and reliability.

Surface Finishing Options

In addition to our standard chemical nickel palladium surface finishing, we also offer a variety of other options such as immersion gold, immersion silver, and OSP. Our team can help you choose the best surface finishing for your specific application.

Advanced Technologies

We are constantly investing in advanced technologies to improve our manufacturing processes and offer our customers the latest and most advanced HDI PCB boards. Our team is well-versed in the latest microvia technology and can provide customized solutions to meet your project's requirements.

Size and Shape Customization

We understand that each project is unique and may require a specific board size and shape. That's why we offer size and shape customization for our HDI PCB boards. Our team can work with your design specifications to create a customized board that fits your specific needs.

Quality Control

At HDI PCB Board, we have strict quality control measures in place to ensure that our customers receive high-quality products. Our team conducts thorough inspections throughout the manufacturing process to ensure that all boards meet our quality standards.

Choose HDI PCB Board for your customized HDI interconnect board needs. Contact us today to learn more about our services and how we can help with your project.
