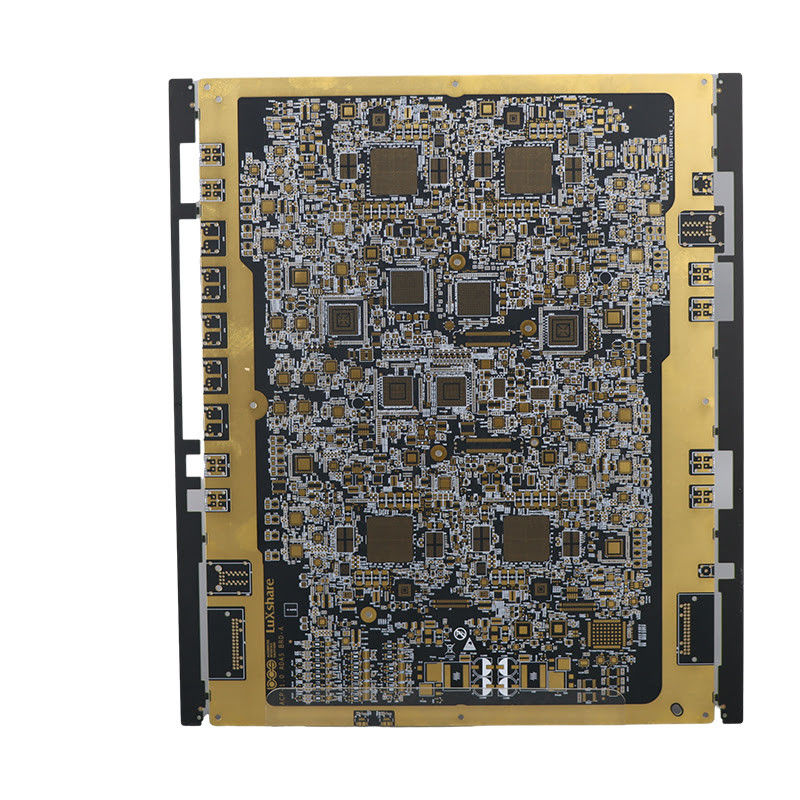

Final Foil 1 Oz Radio Frequency Circuit Board Rohs Compliant

Place of Origin Shenzhen, China
Brand Name Ben Qiang
Certification ISO/TS16949/RoHS/TS16949
Model Number FR-4/Rogers
Minimum Order Quantity 1PCS
Price custom made
Packaging Details Air bead vacuum packaging
Delivery Time 3-7 days delivery
Payment Terms Bank Transfer/Alipay/PayPal
Supply Ability 200,000 square meters/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Minimum Hole Size 0.2mm Board Thk 1.0MM
Copper Thinknes 1 Oz Usage OEM Electronics
Rohs Compliant Yes Outline Rout And Score
Material Rogers/PTFE Surface Finishing ENIG
Highlight

1 Oz Radio Frequency Circuit Board

,

Radio Frequency Circuit Board Rohs

,

radio frequency pcb Rohs

Leave a Message
Product Description

Final Foil 1 Oz High Frequency PCB Min Via 0.1mm Laser Drill Temperature Range -55C To 125C

Product Description:

High Frequency PCB Product Overview

The High Frequency PCB, also known as High-Frequency Microstrip PCB, High-Frequency Microwave PCB, or High-Frequency Stripline PCB, is a type of printed circuit board designed for high-frequency applications. It is widely used in industries such as telecommunications, aerospace, defense, and medical equipment.

Material

The High Frequency PCB is made of high-quality materials, such as Rogers and PTFE. These materials have excellent electrical properties, low dielectric loss, and high thermal stability, making them suitable for high-frequency applications.

Minimum Hole Size

The minimum hole size for the High Frequency PCB is 0.2mm, which allows for precise and accurate placement of components. This ensures the reliability and functionality of the PCB, even in high-frequency environments.

Final Foil

The High Frequency PCB has a final foil of 1 Oz, which refers to the amount of copper used in the outer layer of the PCB. This provides a good balance between electrical conductivity and cost-effectiveness.

Outline

The outline of the High Frequency PCB is created through the process of rout and score. This allows for the precise cutting and shaping of the PCB, ensuring a perfect fit in the final product.

Surface Finished

The High Frequency PCB is finished with immersion gold, which is a type of surface finish that provides excellent conductivity, corrosion resistance, and solderability. This makes it ideal for high-frequency applications where signal integrity is crucial.

Overall, the High Frequency PCB is a high-quality and reliable product that is designed to meet the demanding requirements of high-frequency applications. Its use of top-of-the-line materials and manufacturing processes ensures exceptional performance and longevity, making it a preferred choice for many industries.



Features:

  • Product Name: High Frequency PCB
  • Copper Thickness: 1 Oz
  • Impedance Value: ±10%
  • Rohs Compliant: Yes
  • Minimum Hole Size: 0.2mm
  • Application: Communicate, Automotive
  • High-Frequency Signal PCB
  • High-Frequency Stripline PCB
  • High-Frequency RF PCB


Technical Parameters:

Technical Parameters Description
Product Name High Frequency PCB
Application Communicate, Automotive
High-Frequency Type Microwave, RF
Material Rogers/PTFE
Board Thickness 1.0MM
Surface Finish ENIG (Electroless Nickel Immersion Gold)
Operating Temperature -55℃ to 125℃
Final Foil 1 Oz
Impedance Value ±10%
Minimum Via 0.1mm Laser Drill, 0.2mm Mechanic Drill
Outline Rout and Score
ROHS Compliant Yes
Manufacturer High-Frequency Microwave PCB Manufacturer


Applications:

High Frequency PCB - Ideal for Communication and Automotive Industry

As technology continues to advance and the demand for faster and more efficient communication devices increases, the use of High-Frequency PCBs has become a vital component in the communication and automotive industry. With its high-frequency signal capabilities and enhanced signal integrity, High-Frequency PCBs have revolutionized the way we communicate and operate our vehicles.

What is High-Frequency PCB?

High-Frequency PCB, also known as High-Frequency Printed Wiring Board (PWB) or High-Frequency RF PCB, is a specialized type of circuit board designed to transmit and receive high-frequency signals with minimal signal loss. These PCBs are made with high-quality materials and advanced manufacturing techniques to ensure the highest performance and reliability.

Application in Communication Devices

High-Frequency PCBs are widely used in communication devices such as smartphones, routers, satellite communication systems, and more. With its ability to handle high-frequency signals, these PCBs allow for faster data transfer and better connectivity. This makes them ideal for use in wireless communication devices where speed and reliability are crucial.

Application in Automotive Industry

The automotive industry has also greatly benefited from the use of High-Frequency PCBs. These PCBs are used in various electronic systems in cars, including GPS, infotainment, and driver-assist systems. The high thermal stability of High-Frequency PCBs makes them suitable for use in the extreme temperature conditions of a car's engine compartment.

Surface Finish - Immersion Gold

One of the key attributes of High-Frequency PCBs is their surface finish. These PCBs are commonly finished with Immersion Gold, also known as ENIG (Electroless Nickel Immersion Gold). This finish provides a flat, smooth surface that ensures excellent signal conductivity and protects the PCB from corrosion.

Enhanced Signal Integrity

High-Frequency PCBs are designed with a specific layer structure and specialized materials to minimize signal loss and distortion. This allows for more accurate and reliable data transmission, making them essential for high-speed and high-frequency communication devices.

High-Speed Data Transfer

With the increasing demand for faster data transfer rates, High-Frequency PCBs have become the go-to choice for electronic manufacturers. These PCBs can handle high-speed data transfer with minimal signal loss, making them ideal for high-bandwidth applications.

Low Signal Loss

Signal loss is a significant concern in high-frequency communication systems, as it can lead to data errors and disruptions. High-Frequency PCBs are designed to minimize signal loss, ensuring a reliable and stable communication signal.

High Thermal Stability

The operating temperature range of High-Frequency PCBs is another critical attribute that makes them ideal for communication and automotive applications. These PCBs can withstand extreme temperature conditions, ranging from -55℃ to 125℃, without affecting their performance, making them suitable for use in harsh environments.

RoHS Compliant

High-Frequency PCBs are manufactured using lead-free materials, making them RoHS compliant. This means that they do not contain any hazardous substances and are safe for both the environment and human health.

In conclusion, High-Frequency PCBs are an essential component in the communication and automotive industry, providing enhanced signal integrity, high-speed data transfer, low signal loss, and high thermal stability. With its Immersion Gold surface finish and RoHS compliance, High-Frequency PCBs are the go-to choice for manufacturers looking to produce high-performance communication and automotive devices.



Customization:

Customized High Frequency PCB for Communicate Automotive

Our High Frequency PCB is the ultimate solution for all your communication needs in the automotive industry. With our high-quality materials and advanced technology, we provide the best performance for your communication devices.

High-Frequency RF PCB Design

Our High Frequency PCB is specifically designed for high-frequency applications, making it perfect for communication devices used in the automotive industry. With our expertise in high-frequency PCB design, we ensure optimal signal integrity and minimize signal loss.

Customized Service

We understand that every communication device has unique requirements. That's why we offer customized services to meet your specific needs. Our team of experts will work closely with you to design and manufacture a High Frequency PCB that perfectly fits your requirements.

Rout and Score Capability

Our High Frequency PCB comes with rout and score capabilities, allowing for efficient and precise customization. This feature enables us to create complex patterns and shapes, making our PCBs suitable for a wide range of applications.

±10% Impedance Tolerance

With our advanced technology and strict quality control processes, we guarantee a ±10% impedance tolerance for all our High Frequency PCBs. This ensures stable and consistent performance for your communication devices.

Immersion Gold Surface Finish

For optimal conductivity and protection against oxidation, all our High Frequency PCBs come with an immersion gold surface finish. This finish also provides a smooth and flat surface for easier component placement.

OEM Electronics Usage

Our High Frequency PCBs are widely used in OEM electronics, making them a reliable choice for your communication devices. With our customized services, we can cater to the specific needs of your OEM electronics, providing you with the best quality and performance.



Packing and Shipping:

High Frequency PCB Packaging and Shipping

Our High Frequency PCBs are carefully packaged to ensure safe delivery to your location. We use strong and durable packaging materials to protect the boards from any damage during shipping.

Packaging

The boards are first wrapped in anti-static bags to prevent any static electricity from damaging the delicate components. Then, they are placed in sturdy cardboard boxes with foam padding to provide extra protection.

We also offer customized packaging options, such as adding your company logo or specific labeling, upon request.

Shipping

We offer various shipping methods to meet your specific needs and budget. Our shipping partners are reliable and have a proven track record of delivering packages on time.

For small orders, we offer standard shipping options, which usually take 3-5 business days for domestic deliveries and 7-10 business days for international deliveries.

For urgent orders, we offer expedited shipping options, which can deliver your order within 1-2 business days for domestic deliveries and 3-5 business days for international deliveries.

Once your order is shipped, you will receive a tracking number so you can track the progress of your package and know exactly when it will arrive.

At High Frequency PCB, we take great care in packaging and shipping our products to ensure they reach you in perfect condition. If you have any special requests or concerns, please don't hesitate to contact us and we will do our best to accommodate your needs.



FAQ:

  • Q:What is the frequency of High Frequency PCB?
  • A:The frequency of High Frequency PCB is 1GHz or higher.
  • Q:What is the main application of High Frequency PCB?
  • A:The main application of High Frequency PCB is in high speed and high frequency electronic devices, such as wireless communication systems, radar systems, and satellite systems.
  • Q:What are the advantages of High Frequency PCB?
  • A:The advantages of High Frequency PCB include low signal loss, high signal integrity, and better thermal management.
  • Q:What materials are used in High Frequency PCB?
  • A:The materials used in High Frequency PCB are typically specialized laminates such as Teflon, Rogers, or Arlon.
  • Q:What is the typical turnaround time for High Frequency PCB production?
  • A:The typical turnaround time for High Frequency PCB production is 3-5 days, depending on the complexity and number of layers.
