HDI PCB Board
Created with Pixso.

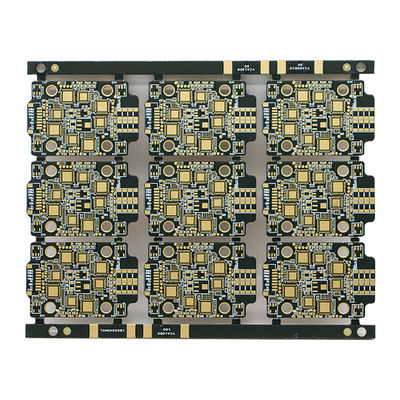

Halogen free High Density Interconnect Pcb 2 N 2 for UAV brushless electric

Halogen free High Density Interconnect Pcb 2 N 2 for UAV brushless electric

Brand Name: Ben Qiang
Model Number: FR-4/Rogers
MOQ: 1PCS
Price: custom made
Payment Terms: Bank Transfer/Alipay/PayPal
Supply Ability: 200,000 square meters/year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO/TS16949/RoHS/TS16949
Application:
UAV Brushless Electric
Characteristic:
2 Oz Copper HDI
Material:
S1000-2M
Layer:
12L
Thickness:
2.2±0.2mm
Min Hole Diameterv:
Laser Hole :0.2mm Mechanical Hole 0.2mm. Aspect Ratio:11:1
Min Width/space:
140/180um
Surface Finish:
ENIG(0.05um)
Internal Model:
E339030C12
Packaging Details:
Air bead vacuum packaging
Supply Ability:
200,000 square meters/year
Highlight:

High Density Interconnect Pcb 2 N 2

,

Halogen Free High Density Interconnect Pcb

Product Description

HDI with 2+N+2

Project PCB process capability
Layer count 1-40 Layers
Min outer line width/space 3/3mil
Outer copper thickness 280um(8OZ)
Inner copper thickness 210um(6OZ)
Tolerance of PCB thickness board thickness≤1.0mm; ±0.1mm,+/-0.05mm below 4 layers
board thickness>1.0mm; ±10%
Minimum PTH Mechanical hole 4mil, laser 3mil
Material FR-4 ,High Tg ,Halogen-free ,PTFE ,Rogers,Polyimide
HDI Levels 2-7
Special Process

Buried blind vias, blind slots, rigid-flex combination,mixed pressure, back drilling, buried resistance,buriedcapacitance, milling steps, multi-combination impedance;
