| Brand Name: | Support OEM / ODM |
| Model Number: | HDI PCB |
| MOQ: | 1-10 pcs |
| Price: | USD 0.50–200/pc |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | Double Sided: 12000 sq m / month Multilayers: 8000sq.m / month |

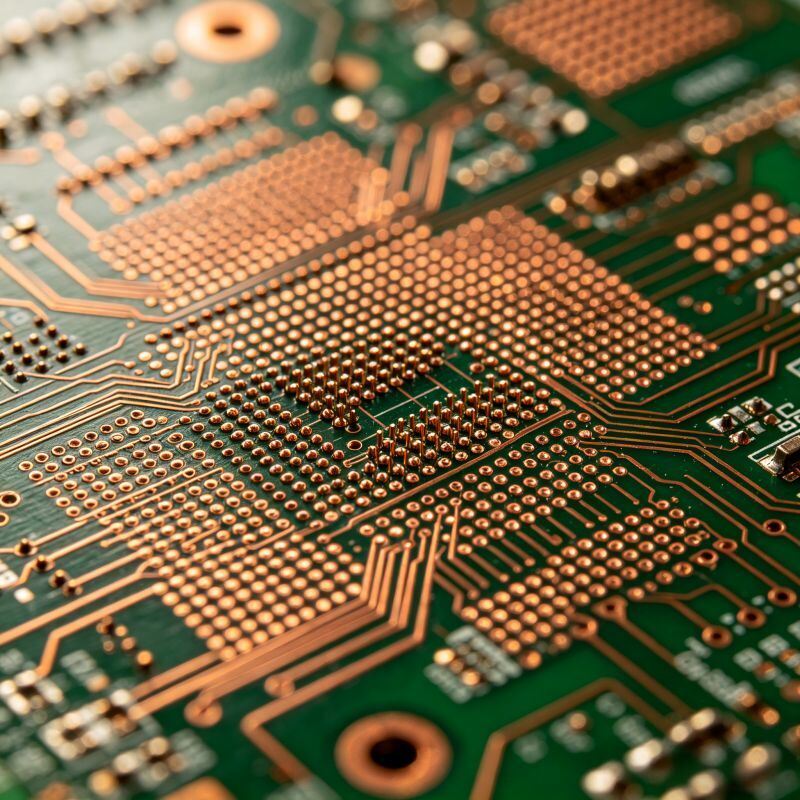

The HDI PCB product is a cutting-edge solution designed to meet the rigorous demands of modern electronics manufacturing. This Advanced HDI Circuit Board adheres to the highest industry standards, specifically the IPC-A-610 D and IPC-III standards, ensuring superior quality, reliability, and performance. By complying with these stringent standards, the HDI PCB guarantees exceptional workmanship and meets the requirements for high-end electronic applications.
One of the standout features of this product is its use of Immersion Gold surface treatment. This finish provides excellent surface planarity and superior solderability, which is crucial for maintaining reliable electrical connections in densely packed circuits. The Immersion Gold layer also offers excellent resistance to oxidation and corrosion, thereby enhancing the longevity and durability of the Compact HDI Electronic Board. This is particularly important for power products where consistent performance over extended periods is essential.
The board thickness is precisely engineered at 1.6MM, providing an optimal balance between mechanical strength and electrical performance. This thickness is widely regarded as the industry standard for many power product applications, offering enough rigidity to withstand manufacturing processes and operational stresses while supporting the intricate circuitry typical of High Density Interconnect PCB designs. The 1.6MM thickness also facilitates effective heat dissipation, which is vital in power electronics to maintain operational stability and prevent overheating.
Designed as a Power Products PCB Board, this HDI PCB is specifically tailored to handle the demands of power management and distribution systems. Its Advanced HDI Circuit Board structure allows for a higher wiring density and finer line widths, enabling more complex and compact circuit designs without compromising signal integrity or performance. This makes it an ideal choice for applications that require both high efficiency and miniaturization, such as power converters, inverters, and other energy-related electronic devices.
The manufacturing process supports multiple file formats, including Gerber Files and Pack-N-Place File (XYRS). These file formats are essential for seamless integration into automated assembly lines and ensure precise component placement and soldering. The inclusion of Pack-N-Place File (XYRS) format facilitates automated pick-and-place machinery to accurately position components on the Compact HDI Electronic Board, thereby reducing assembly errors and improving production efficiency.
The High Density Interconnect PCB design of this product allows for multiple layers of circuitry to be interconnected within a minimal footprint. This capability is critical for modern electronic devices where space is at a premium and performance requirements continue to escalate. By leveraging the HDI technology, the PCB can support finer vias, tighter spacing, and enhanced electrical performance, which translates to faster signal transmission and reduced electromagnetic interference.
In summary, this HDI PCB product combines advanced manufacturing standards, premium surface treatment, optimized board thickness, and comprehensive file format support to deliver a highly reliable and efficient power products PCB board. Its Advanced HDI Circuit Board design and Compact HDI Electronic Board form factor make it an ideal solution for high-performance, space-constrained applications that demand robustness and precision. Whether used in power electronics or other sophisticated devices, this High Density Interconnect PCB represents the forefront of PCB technology, enabling manufacturers to achieve superior functionality and reliability in their electronic products.
| Applications | Consumer |
| Product Type | Power Products PCB Board |
| Solder Mask Colour | Green |
| File Formats | Gerber Files; Pack-N-Place File (XYRS) |
| Electronics Source | Yes |
| Stack Up | 2-6-2 |
| Min Hole | Mechanical Hole 0.2mm, Laser Hole 0.1mm |
| Surface Treatment | Immersion Gold |
| Board Thickness | 1.6MM |
| PCB Standard | IPC-A-610 D / IPC-III Standard |
The High Performance HDI PCB manufactured by Support OEM is designed to meet the demanding requirements of modern electronic applications. With its advanced stack-up structure of 2-6-2 layers, precise impedance control options of 50Ω, 75Ω, and 100Ω, and superior surface treatment featuring immersion gold, this HDI Printed Circuit Board is ideal for high-density and high-speed electronic devices. The minimum mechanical hole size of 0.2mm and laser hole size of 0.1mm allow for intricate circuit designs that maximize space efficiency and signal integrity.
The HDI PCB is widely used in various application occasions and scenarios where compactness, reliability, and performance are critical. In consumer electronics such as smartphones, tablets, and wearable devices, the HDI Printed Circuit Board provides the necessary miniaturization and high-speed signal transmission capabilities. Its green solder mask color and vacuum packaging with carton box ensure quality preservation and aesthetic appeal, making it suitable for premium electronic products.
In the automotive industry, the HDI PCB’s compliance with ISO9001, ISO14001, and ISO/TS16949 certifications guarantees high-quality standards and environmental responsibility. It supports complex automotive electronic control units (ECUs), advanced driver-assistance systems (ADAS), and infotainment systems, where reliable performance and precise impedance control are critical for safety and functionality.
Industrial and medical equipment also benefit from the High Performance HDI PCB’s robust design and fast delivery time of 7-15 working days. Its ability to be customized through a quotation based on Gerber files, specifications, and order quantity allows manufacturers to tailor the HDI Printed Circuit Board to specific project requirements. With a supply ability of 20,000 square meters per month and flexible payment terms including T/T, Western Union, and Paypal, Support OEM ensures seamless procurement for both small and large-scale production runs, starting from a minimum order quantity of just 1-10 pieces.
Overall, the HDI PCB by Support OEM is the perfect solution for electronics manufacturers looking for high-density, high-performance HDI Printed Circuit Boards that combine precision engineering, quality certification, and efficient supply chain management to excel in diverse industries and applications.
Support OEM offers customized HDI PCB products tailored to your specific requirements. Our HDI Printed Circuit Board is manufactured with high precision and adheres to strict quality standards including ISO9001, ISO14001, and ISO/TS16949 certifications.
Model Number: HDI PCB, Place of Origin: HDI PCB. We provide a minimum order quantity ranging from 1 to 10 pieces, making it convenient for both small and large scale projects. Pricing is available through custom quotation based on your Gerber files, specifications, and order quantity.
Our Advanced HDI Circuit Board is made from premium base materials such as FR-4, CEM-1, CEM-3, Polyimide, and PTFE/Rogers, ensuring durability and excellent performance. We accept Gerber Files and Pack-N-Place File (XYRS) formats for precise manufacturing.
The Thin Layer HDI Board features a green solder mask color and complies with the IPC-A-610 D / IPC-III standards, guaranteeing top quality and reliability for consumer applications.
Packaging details include vacuum packaging plus carton box to ensure safe delivery. We maintain a supply ability of 20,000 square meters per month with delivery times ranging from 7 to 15 working days.
Payment terms are flexible, accepting T/T, Western Union, and Paypal to facilitate smooth transactions. Choose Support OEM for your HDI Printed Circuit Board needs and experience superior Advanced HDI Circuit Board customization services.
Our HDI PCB product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed design guidelines, manufacturing recommendations, and testing procedures to help you achieve the best results with your HDI PCB applications.
Our experienced technical team is available to assist with any design challenges, material selections, and process optimizations. We offer consultation on stack-up configurations, via structures, and signal integrity considerations tailored to your specific requirements.
Additionally, we provide thorough documentation including fabrication notes, assembly instructions, and quality assurance protocols. Our support services also encompass troubleshooting assistance and failure analysis to quickly resolve any issues that may arise during production or usage.
We are committed to continuous improvement and innovation in HDI PCB technology, offering regular updates and training sessions to keep your team informed about the latest advancements and best practices.
Our HDI PCB products are carefully packaged to ensure maximum protection during transit. Each PCB is placed in an anti-static bag to prevent electrostatic discharge, followed by a protective layer of foam or bubble wrap to cushion against physical impact.
The packaged PCBs are then securely placed in sturdy, double-walled cardboard boxes designed to withstand shipping stresses. We also include desiccant packets inside the packaging to control moisture and prevent corrosion.
For shipping, we offer multiple options including standard ground, expedited air freight, and courier services to meet your delivery requirements. All shipments are tracked and insured to guarantee safe and timely arrival.
Our packaging and shipping processes comply with international standards to ensure that your HDI PCB products arrive in perfect condition, ready for immediate use.
Q1: What certifications does the HDI PCB have?
A1: The HDI PCB is certified with ISO9001, ISO14001, and ISO/TS16949, ensuring high quality and environmental standards.
Q2: What is the minimum order quantity for the HDI PCB?
A2: The minimum order quantity for the HDI PCB ranges from 1 to 10 pieces, suitable for both small and large production needs.
Q3: How is the pricing determined for the HDI PCB?
A3: Pricing is based on a custom quotation that depends on your Gerber files, specifications, and order quantity.
Q4: What are the packaging details for the HDI PCB?
A4: The HDI PCBs are carefully packed using vacuum packaging followed by a carton box to ensure safe delivery.
Q5: What payment methods are accepted for purchasing the HDI PCB?
A5: We accept payments via T/T (Telegraphic Transfer), Western Union, and Paypal for your convenience.
Q6: What is the typical delivery time for HDI PCB orders?
A6: The delivery time usually ranges from 7 to 15 working days depending on the order size and specifications.
Q7: What is the monthly supply capacity for the HDI PCB?
A7: Our supply ability for HDI PCB is up to 20,000 square meters per month, ensuring steady availability for your projects.
