4 Layer Rigid PCB 1.6mm FR4 TG135 Automotive Electronic Production

Product Description:

The Rigid PCB Assembly Board is a high-quality printed circuit board designed to meet the demands of modern electronic applications. This product features a robust 4-layer construction, utilizing premium FR4 material with a Tg rating of 135°C and a thickness of 1.6mm. The dimensions of this Rigid Multilayer PCB Board are precisely 100mm by 112.41mm, making it suitable for a wide range of compact and complex electronic devices.

One of the standout features of this Rigid PCB Assembly Board is its multilayer design. With four dedicated layers, the board offers enhanced electrical performance, improved signal integrity, and superior mechanical strength compared to single or double-layer PCBs. The multilayer configuration allows for efficient routing of power and signals, minimizing electromagnetic interference and crosstalk, which is crucial for sensitive electronic circuits.

The PCB is fabricated using FR4 material, a widely trusted epoxy glass laminate known for its excellent mechanical and electrical properties. The Tg135 specification indicates that the board can withstand temperatures up to 135°C without significant deformation, ensuring reliability and durability in harsh operating environments. The 1.6mm thickness strikes an optimal balance between rigidity and flexibility, providing a sturdy foundation for electronic components while maintaining ease of handling during assembly.

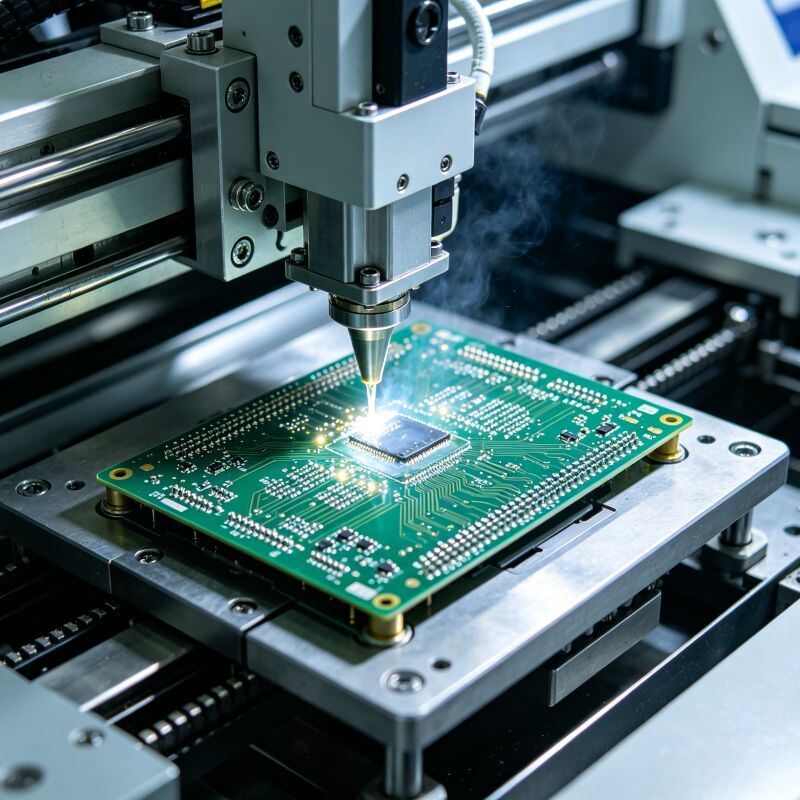

Assembly of the Rigid PCB Assembly Board is carried out using Surface Mount Technology (SMT), a modern and efficient method that allows for the placement of components directly onto the surface of the PCB. SMT enhances the overall performance of the board by enabling higher component density and better electrical connections. This method also reduces the size and weight of the final product, making the Rigid Multilayer PCB Board ideal for compact devices and applications requiring miniaturization.

Quality assurance is a critical aspect of the Rigid PCB Assembly Board, and this product undergoes rigorous testing procedures to ensure flawless performance. The board is tested using both Probe Test and E-test methods. Probe Testing involves using a fixture with multiple probes to check electrical connectivity and detect any open or short circuits across the board. E-test, or electrical testing, further verifies the integrity of the circuitry by applying electrical currents and measuring responses to confirm that all connections meet the required specifications. These comprehensive testing techniques guarantee that each Rigid PCB Assembly Board delivered is free from defects and ready for reliable use in demanding electronic applications.

The precise dimensions of 100mm by 112.41mm make this Rigid Multilayer PCB Board versatile and compatible with a wide array of electronic products. Whether it is used in consumer electronics, industrial machinery, telecommunications, or automotive systems, the board's size and construction ensure it fits seamlessly into various design requirements while providing excellent electrical and mechanical performance.

In conclusion, the Rigid PCB Assembly Board combines advanced multilayer design, high-quality FR4 materials, precise dimensions, and stringent testing methods to offer a dependable and efficient solution for electronic manufacturing. Its 4-layer FR4 TG135 1.6mm specification, along with SMT assembly and thorough Probe and E-test inspections, make it an ideal choice for engineers and manufacturers seeking a reliable rigid printed circuit board for their projects. This Rigid Multilayer PCB Board not only meets but exceeds industry standards, ensuring optimal performance and longevity in every application.

Technical Parameters:

Applications:

The Rigid PCB, manufactured by Support OEM in Shenzhen, China, is a highly reliable and versatile product designed to meet the demanding requirements of various electronic applications. With certifications including ISO9001, ISO14001, UL, and IATF16949, this Rigid PCB Assembly Board ensures superior quality and environmental compliance, making it ideal for industries where precision and durability are paramount.

This Rigid Circuit Board Panel is widely used in consumer electronics, automotive electronics, industrial machinery, and telecommunications equipment. Its robust structure and green solder mask provide excellent insulation and protection against environmental factors, making it suitable for both indoor and outdoor applications. The Rigid PCBA Circuit Board is an optimal choice for assembling complex electronic components through SMT methods, providing high-density and high-performance circuit solutions.

In the automotive sector, the Rigid PCB Assembly Board supports various control systems, sensors, and infotainment modules, where reliability and long-term stability are critical. The product’s UL and IATF16949 certifications further confirm its suitability for automotive-grade electronics. Similarly, in consumer electronics, the Rigid Circuit Board Panel is used in smartphones, tablets, and wearable devices, offering compact and efficient circuit integration.

Industrial applications also benefit from the Rigid PCBA Circuit Board’s durability and precision. It is commonly employed in automation control systems, robotics, and power management units, where it withstands harsh conditions and continuous operation. The probe test and E-test methods ensure that each board meets stringent quality standards before delivery.

With a minimum order quantity of just 1 unit and competitive pricing, this Rigid PCB product is accessible for both small-scale prototyping and large-scale production. Support OEM guarantees delivery within 7 to 15 working days, with packaging that includes vacuum sealing and carton boxes to protect the boards during transit. Payment terms are flexible, typically spanning 7 to 15 days, and the company boasts a supply capacity of 20,000 square meters per month.

Overall, the Support OEM Rigid PCB Assembly Board, Rigid Circuit Board Panel, and Rigid PCBA Circuit Board are ideal for a broad range of applications requiring reliable, high-quality rigid PCBs with excellent manufacturing and testing standards. Their adaptability, certification credentials, and efficient production and delivery make them a preferred choice in electronics manufacturing worldwide.

FAQ:

Q1: What is the minimum order quantity for the Rigid PCB?

A1: The minimum order quantity for the Rigid PCB is 1 unit.

Q2: Where is the Rigid PCB manufactured?

A2: The Rigid PCB is manufactured in Shenzhen, China.

Q3: What certifications does the Rigid PCB have?

A3: The Rigid PCB is certified with ISO9001, ISO14001, UL, and IATF16949.

Q4: What is the typical delivery time for orders of the Rigid PCB?

A4: The delivery time for the Rigid PCB is typically between 7 to 15 working days.

Q5: How is the Rigid PCB packaged for shipment?

A5: The Rigid PCB is packaged using a vacuum package and then placed inside a carton box to ensure safe delivery.
