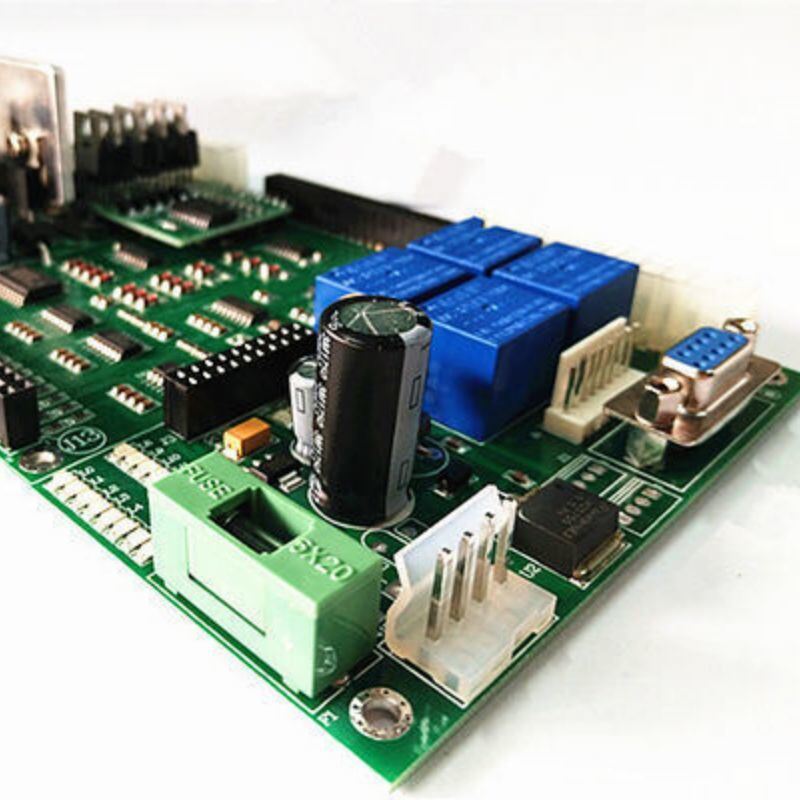

40°C to 85°C PCBA for Communication RoHS Compliance Insulation Resistant

Product Description:

The Communication Electronic Circuit Board is an essential component in modern communication systems, designed to deliver high performance, reliability, and durability. This Printed Circuit Board Assembly (PCBA) is engineered to meet the demanding requirements of various communication devices, making it a critical part of Communication Hardware Circuit Boards used in numerous applications ranging from telecommunications infrastructure to consumer electronics.

One of the standout features of this Communication Module Circuit Assembly is its versatility in terms of PCB layers. With options ranging from 2 to more than 20 layers, this PCBA can be customized to accommodate complex circuit designs and high-density interconnections. This flexibility allows manufacturers to optimize the board for space, signal integrity, and electromagnetic compatibility, ensuring superior performance in communication devices.

The material used in manufacturing this Communication Electronic Circuit Board is high-quality FR4, a widely recognized standard in the industry for its excellent mechanical strength, thermal resistance, and electrical insulation properties. FR4 provides a stable substrate that supports the intricate circuitry and components mounted on the board, making it suitable for both standard and high-frequency communication applications.

Operating temperature is a critical factor for communication hardware, especially when deployed in diverse environmental conditions. This Communication Hardware Circuit Board is designed to operate reliably within a temperature range of -40°C to 85°C. Such a broad operating temperature range ensures that the PCBA can function effectively in harsh environments, from cold outdoor installations to warmer indoor settings, without compromising its performance or longevity.

Quality and reliability are paramount in the production of Communication Module Circuit Assemblies. To ensure the highest standards, this PCBA undergoes rigorous testing processes including Automated Optical Inspection (AOI), Flying Probe Testing, and Functional Testing. AOI helps detect any surface defects or soldering faults early in the manufacturing process, while Flying Probe Testing ensures electrical continuity and identifies any short circuits or open circuits. Functional Testing validates the overall performance of the assembled board, confirming that it meets the specified operational criteria before shipment.

The integration of these testing methodologies guarantees that each Communication Electronic Circuit Board delivered to customers is free from defects and fully operational. This commitment to quality control minimizes the risk of failures in the field, enhancing the reliability of the communication systems that depend on these hardware circuit boards.

In summary, this Communication Module Circuit Assembly represents a robust, adaptable, and high-quality solution for modern communication needs. Its multi-layer PCB design capabilities, durable FR4 material, and wide operating temperature range make it suitable for a vast array of communication devices and environments. Coupled with comprehensive testing protocols such as AOI, Flying Probe, and Functional Testing, this PCBA ensures dependable performance and longevity, making it a preferred choice for manufacturers and developers in the communication industry.

Whether you are developing telecommunications equipment, networking devices, or other communication hardware, this Communication Electronic Circuit Board provides the reliability and efficiency required to support advanced communication technologies and applications.

Features:

• Product Name: PCBA for Communication
• RoHS Compliance: Yes, environmentally friendly and safe
• Operating Temperature Range: -40°C to 85°C for reliable performance in various environments
• Application: Designed specifically for Communication Devices
• Component Mounting: Supports both SMT and Through-Hole technologies
• Signal Integrity: High, ensuring optimal performance for communication signals
• Includes Communication Circuit Board Assembly optimized for efficient signal processing
• Features Communication Signal Processing Board capabilities for enhanced data handling
• Reliable Communication PCB Assembly Unit suitable for a wide range of communication equipment

Technical Parameters:

Applications:

The PCBA For Communication, proudly offered by Support OEM and manufactured in Shenzhen, China, is a high-quality Printed Circuit Board Assembly designed specifically for communication devices. Certified with ISO9001, ISO14001, UL, and IATF16949, this product guarantees reliability and compliance with international standards. Its robust design and versatile connector types, including SMA, RJ45, and USB depending on the design, make it an ideal choice for a wide range of communication applications.

This Communication Signal Processing Board excels in managing and processing signals in various communication devices. It is perfectly suited for integration into routers, modems, base stations, and IoT devices, where efficient and stable signal processing is critical. The board ensures seamless communication interface functionality, enhancing data transmission and reception quality across networks.

As a Communication Interface Circuit Board, it serves as the backbone for establishing and maintaining robust connections between communication modules and external devices. Its advanced circuitry supports multiple communication protocols, making it adaptable to various communication scenarios, from home networking to industrial IoT applications. The precision in design and assembly contributes to minimized signal loss and improved overall system performance.

The Communication Control Board Assembly aspect of this PCBA provides intelligent control over communication processes, facilitating smooth operation and management of data flow. It supports essential communication control functions that are vital for maintaining network stability and ensuring efficient resource allocation in communication devices.

With a minimum order quantity of just one unit and a competitive price per unit, the PCBA For Communication is accessible for both small-scale prototyping and large volume production. Packaging is handled with care using vacuum packaging and carton boxes to ensure product safety during transportation. Delivery is prompt, typically within 7-10 working days, supported by flexible payment terms including Western Union and T/T.

Offering a supply capacity of up to 20,000 square meters per month, Support OEM is capable of meeting diverse demand scales efficiently. Moreover, this product is RoHS compliant, ensuring it meets environmental and safety regulations. Whether for developing cutting-edge communication devices or upgrading existing systems, the PCBA For Communication stands as a reliable, high-performance solution in the communication technology landscape.

Customization:

Our PCBA for Communication product is designed to meet the highest standards in the industry, offering superior Communication Printed Circuit Assembly solutions. Manufactured in Shenzhen, China, this Communication Hardware Circuit Board is built with FR4 material and features a board thickness of 1.6mm, ensuring excellent durability and insulation resistance of ≥1000MΩ.

We support OEM customization to cater to your specific requirements. The product holds certifications including ISO9001, ISO14001, UL, and IATF16949, guaranteeing quality and reliability. With a minimum order quantity of just 1 unit, we offer flexible pricing and packaging options, including vacuum packaging and carton boxes for secure delivery.

Our supply ability reaches up to 20,000 square meters per month, with a delivery time of 7-10 working days. Payment terms include Western Union and T/T for your convenience. The Communication Printed Circuit Assembly ensures high signal integrity, making it ideal for various communication devices.

Support and Services:

Our Product Technical Support and Services for the PCBA (Printed Circuit Board Assembly) for Communication products are designed to ensure optimal performance and reliability. We provide comprehensive assistance including installation guidance, troubleshooting, firmware updates, and maintenance tips.

Technical support is available to help diagnose and resolve issues related to hardware functionality, signal integrity, and connectivity. Our team of experts is equipped to assist with configuration settings and integration into your communication systems.

We also offer repair services and replacement parts to minimize downtime. Preventive maintenance recommendations and best practices are provided to extend the lifespan of your PCBA products.

For enhanced user experience, detailed product documentation and FAQs are accessible to address common questions and technical concerns.

Please refer to our official support channels for further assistance and service requests.

Packing and Shipping:

Product Packaging and Shipping for PCBA - Communication Product

To ensure the safe delivery and optimal condition of the PCBA (Printed Circuit Board Assembly) for our communication product, careful attention is given to the packaging and shipping process.

Packaging:

Each PCBA is first placed in an anti-static bag to prevent electrostatic discharge (ESD) damage. The bagged assembly is then cushioned with foam or bubble wrap to protect against mechanical shocks during handling and transit. The protected PCBA is placed in a sturdy, appropriately sized box designed to minimize movement inside the package.

Multiple layers of protective material may be used depending on the fragility and quantity of the PCBA units being shipped. Additionally, the packaging is clearly labeled with handling instructions such as "Fragile," "Handle with Care," and "ESD Sensitive" to alert handlers.

Shipping:

Shipments are arranged through reliable carriers experienced in handling electronic components. The shipping method is selected based on the urgency and destination, with options ranging from standard ground shipping to expedited air freight.

Tracking information and documentation, including packing lists and compliance certificates, are provided with each shipment to ensure transparency and facilitate customs clearance when necessary.

Upon receipt, customers are advised to inspect the packaging for any signs of damage before opening and to report any issues immediately to ensure timely resolution.

FAQ:

Q1: What is the brand and model of this PCBA for communication product?

A1: The product is offered under the brand "Support OEM" with the model number "PCBA For Communication".

Q2: Where is this PCBA for Communication manufactured?

A2: This product is manufactured in Shenzhen, China.

Q3: What certifications does this PCBA have?

A3: The PCBA for Communication is certified with ISO9001, ISO14001, UL, and IATF16949 standards.

Q4: What is the minimum order quantity and price for this product?

A4: The minimum order quantity is 1 unit, and the price is based on a per unit basis.

Q5: How is the product packaged and what is the typical delivery time?

A5: The product is packaged using a vacuum package plus a carton box, and the typical delivery time is 7-10 working days.

Q6: What payment methods are accepted for purchasing the PCBA for Communication?

A6: Payment can be made via Western Union or T/T (Telegraphic Transfer).

Q7: What is the supply capacity of this PCBA for Communication product?

A7: The supply ability is 20,000 square meters per month.
