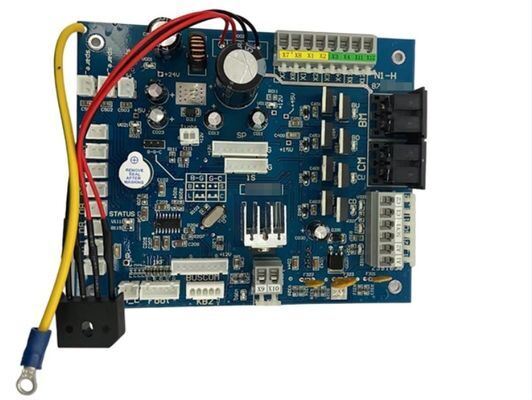

Medical Grade FR4 SMT PCBA For Dental Chairs 1-48 Layers Customizable

Medical Grade FR4 SMT PCBA For Dental Chairs 1-48 Layers Customizable

Brand Name: Support OEM / ODM
Model Number: Medical Device PCBA
MOQ: 1-10 pcs
Price: USD 5–500/pc
Payment Terms: T/T,Western Union,Paypal
Supply Ability: Double Sided: 12000 sq m / month Multilayers: 8000sq.m / month
Detail Information
Place of Origin:
China
Certification:
ISO9001, TS16949, UL, RoHS
TestingStandards:
100% AOI, X-ray Inspection, Functional Testing
Copper Weight:
2OZ
Material:
FR4 (Flame Retardant 4) PCB Substrate
Finish:
CNC
Min Hole Size:
0.2mm
Board Thickness:
1.0MM
Traceability:
Full Traceability With Lot And Serial Number Tracking
Number Of Layers:
1-48 Layers( Customizable)
TraceWidth:
5mil
SignalIntegrity:
High Signal Integrity With Controlled Impedance
Hdi Pcb Standards:
IPC-A-610 D
Copper Thickness:
1/3oz-6oz
Copper Thk:
1.5OZ Inner 2OZ Outer
Impedance Control::
Yes
Feature:
Custom Service Type Control
Applications:
Banking System,3C
Solderingprocess:
Lead-free Soldering (RoHS Compliant)
Compliancestandards:
ISO 13485, FDA, RoHS, CE
Layercount:
2 To 12 Layers
Componenttype:
Surface Mount Technology (SMT) And Through-Hole Technology (THT)
Signalintegrity:
High, With Controlled Impedance
Function:
Electronic Circuit Board Assembly For Medical Devices
Powersupplyvoltage:
Typically 3.3V, 5V Or 12V Depending On Design
Testingmethods:
AOI (Automated Optical Inspection), X-ray Inspection, Functional Testing
Boardthickness:
1.6 Mm Standard
Tracewidth:
Minimum 4 Mil
Warrantyperiod:
12 Months
Operatingtemperaturerange:
-40°C To 85°C
Productname:
Medical Device PCBA
Layers:
1~64 Layers
Packaging Details:
Vacuum Package+Carton Box
Supply Ability:
Double Sided: 12000 sq m / month Multilayers: 8000sq.m / month
Highlight:

FR4 SMT PCBA

,

Medical Grade SMT PCBA

,

Dental Chairs SMT PCBA

Product Description
High-precision SMT PCBA for Dental Chairs in Medical Devices PCBA Fast Turn Manufacturing
Professional PCB & PCBA Turnkey Solutions

In the field of medical technology, precision, reliability, and compliance with strict regulatory standards are non-negotiable. From life-saving diagnostic tools to advanced wearable health devices, PCBA plays a vital role. Our state-of-the-art facility in Shenzhen has established itself as a leader in manufacturing medical equipment PCBA.

Medical PCBA manufacturing facility Precision PCBA assembly process
Challenges in Manufacturing Medical Equipment PCBA
Stringent Quality Standards

Medical equipment PCBA must meet rigorous quality and safety requirements, including certifications such as ISO 13485, FDA compliance, and IPC Class 3 standards. These regulations demand faultless production, robust traceability, and thorough testing processes.

Our Quality Solutions:
  • Certified Production Facility: Our factory in Shenzhen adheres to global standards, including ISO 13485, ensuring compliance with medical-grade manufacturing protocols.
  • Stringent Testing: We perform comprehensive testing at every stage, such as AOI (Automated Optical Inspection), ICT (In-Circuit Testing), and functional testing.
  • Traceability Systems: Each batch of PCBA is tracked with detailed documentation to meet regulatory requirements and provide complete transparency.
High-density Designs

Medical devices are becoming more compact and multifunctional, requiring high-density PCBs with features such as fine-pitch components, microvias, and multiple layers.

Application Fields

PCBA applications in medical equipment cover a wide range of critical devices:

  • Diagnostic Devices: MRI machines, CT scanners, and portable diagnostic tools
  • Therapeutic Equipment: Infusion pumps, ventilators, and defibrillators
  • Wearable Health Devices: Smartwatches and fitness trackers with health monitoring capabilities
  • Laboratory Instruments: Blood analyzers, centrifuges, and spectrophotometers
Technical Parameters for Medical Equipment PCBA
Parameter Description
Process SMT (Surface Mount Technology), THT (Through-Hole Technology)
Board Thickness 0.8 - 2.0 mm
Number of Layers 4 - 16 layers
Copper Thickness 1 - 3 oz/sq ft
Dielectric Constant 3.5 - 4.5
Insulation Resistance ≥1000MΩ
Voltage Withstand 1000 - 5000 V
Temperature Range -40℃ - 85℃
Humidity Range 10% - 90%
Component Tolerance ±0.1 - ±0.5 mm
Detection Method AOI, X-ray Inspection, Functional Test
Reliability Test Aging Test, Vibration Test, Shock Test
15 Years of Excellence | Self-Owned Factory | End-to-End Technical Support
Core Advantage 1: Advanced Engineering for Precision PCB Manufacturing
  • High-Density Stack-Up: 2-48 layer boards with blind/buried vias, 3/3mil trace/spacing, ±7% impedance control
  • Smart Manufacturing: Self-owned facility equipped with LDI laser exposure, vacuum lamination, and flying probe testers
PCB manufacturing equipment PCB quality inspection Advanced PCB technology
Core Advantage 2: Integrated PCBA Services | One-Stop Turnkey Solutions
  • Full Assembly Support: PCB fabrication + component sourcing + SMT assembly + functional testing
  • DFM/DFA Optimization: Expert engineering team reduces design risks and BOM costs
  • Rigorous Quality Control: X-ray inspection, AOI testing, and 100% functional validation for zero-defect delivery
PCBA assembly line SMT manufacturing process Quality control inspection Finished PCBA products
Core Advantage 3: Self-Owned Factory with Full Supply Chain Control
  • Vertical Integration: Raw material procurement, production, and testing are fully managed in-house
  • Triple Quality Assurance: AOI + impedance testing + thermal cycling, defect rate <0.2%
  • Global Certifications: ISO9001, IATF16949, and RoHS compliance
Factory production area Supply chain management Quality assurance process Manufacturing certification
Advanced Soldering Capabilities

We offer professional PCB manufacturing and comprehensive PCBA services, including component sourcing and SMT service with Samsung functional machines. Our core strengths include 8-stage lead-free reflow soldering and lead-free wave soldering capabilities at our Shenzhen factory, ensuring high-quality assembly while adhering to global environmental standards.

Lead-free soldering process diagram
Customized Medical Device PCBA Examples
Custom medical PCBA example 1 Custom medical PCBA example 2 Custom medical PCBA example 3 Custom medical PCBA example 4

Please Note: All products in our store are processing customized services. Please be sure to contact our professional customer service before placing an order to confirm the product details.

All photos on this site are real. Due to changes in lighting, and display resolution, the image you see may have some degree of chromatic aberration. Thank you for your understanding.

We are a professional PCB manufacturer with 17 years of history in China. Our products are updated and upgraded every year, and we specialize in all kinds of PCB making and PCBA customization services. If you are interested in our products, please tell us your requirements - we will help you provide professional solutions. Please contact us online or email us, and we will provide you with one-on-one service from our professional sales team.
