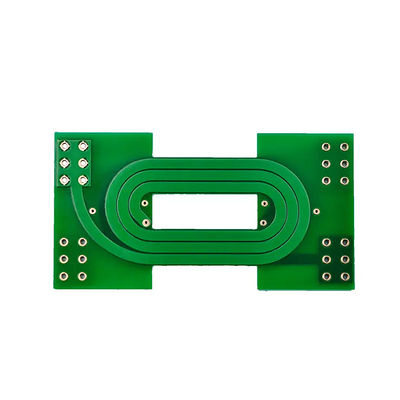

Green Solder Mask White Silkscreen 2 Layer Copper PCB for Maximum Power Efficiency

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Minimum Trace Spacing 0.2mm Solder Mask Color Green
Silkscreen Color White Layer Count 2
Minimum Trace Width 0.2mm Rohs Compliant Yes
Minimum Hole Size 0.3mm Surface Finish HASL
Leave a Message
Product Description

Product Description:

The Thick Copper PCB is a two-layer board that is made from a high-quality copper material that is known for its excellent conductivity and durability. This PCB is designed to handle high current and high temperature applications, making it ideal for use in power electronics, automotive, aerospace, and other industries where reliability and performance are critical.

The Thick Copper PCB is designed to deliver superior heat dissipation, which is critical in high power applications. With its thick copper power layers, this PCB can handle high current loads and dissipate heat quickly and efficiently, ensuring that your components stay cool and perform optimally.

When it comes to surface finish, the Thick Copper PCB comes with HASL (Hot Air Solder Leveling) finish, which provides a reliable and cost-effective coating that is ideal for high power applications. The HASL finish provides excellent thermal conductivity, which is essential for heat dissipation and reliability in high power applications.

The Thick Copper PCB is also RoHS compliant, which means that it is free from hazardous substances that can harm the environment or pose a risk to human health. This makes this PCB a safe and environmentally-friendly choice for high power applications.

Overall, the Thick Copper PCB is an excellent choice for anyone who needs a high-quality PCB with thick copper power layers. Whether you're working in the automotive, aerospace, power electronics, or any other industry where high power transmission and heat dissipation are essential, this PCB is sure to meet your needs and exceed your expectations.


Features:

  • Product Name: Thick Copper PCB
  • Surface Finish: HASL
  • Application: Power Electronics
  • Copper Thickness: 3oz
  • Thickness: 1.6mm
  • Solder Mask Color: Green

Looking for a PCB with copper thick power? Look no further than our Thick Copper PCB! This Power thick copper PCB has a Copper Thickness of 3oz and a Thickness of 1.6mm, making it perfect for high-power applications in Power Electronics. Its surface finish is HASL, and its Solder Mask Color is Green.


Technical Parameters:

Rohs Compliant Yes
Solder Mask Color Green
Thickness 1.6mm
Silkscreen Color White
Maximum Panel Size 600mm X 600mm
Minimum Trace Width 0.2mm
Copper Thickness 3oz
Layer Count 2
Minimum Trace Spacing 0.2mm
Surface Finish HASL

Applications:

Power Electronics

Thick Copper PCB is commonly used in power electronics devices such as power supplies, motor controllers, and inverters. These devices require high current handling capacity and efficient heat dissipation, which can be achieved by using Thick Copper PCB. The thicker copper layer allows for better thermal conductivity and reduces the risk of overheating or failure.

Automotive Industry

Thick Copper PCB is also used in the automotive industry for various applications such as engine control units, dashboard electronics, and lighting systems. These applications require high reliability and durability, which can be achieved by using Thick Copper PCB. The thicker copper layer also provides better resistance to vibration and shock, making it an ideal choice for automotive applications.

Aerospace and Defense

Thick Copper PCB is widely used in the aerospace and defense industry for various applications such as avionics, satellite communications, and radar systems. These applications require high performance and reliability in harsh environments, which can be achieved by using Thick Copper PCB. The thicker copper layer also provides better electrical conductivity and reduces the risk of signal loss or interference.

Industrial Automation

Thick Copper PCB is commonly used in industrial automation equipment such as robots, PLCs, and motion controllers. These applications require high current handling capacity and efficient heat dissipation, which can be achieved by using Thick Copper PCB. The thicker copper layer also provides better resistance to corrosion and oxidation, making it an ideal choice for industrial applications.

Medical Equipment

Thick Copper PCB is also used in medical equipment such as MRI machines, CT scanners, and ultrasound systems. These applications require high performance and reliability, which can be achieved by using Thick Copper PCB. The thicker copper layer also provides better thermal conductivity and reduces the risk of overheating or failure.

In conclusion, Thick Copper PCB is a versatile type of printed circuit board that can be used in various applications where high current handling capacity, efficient heat dissipation, and reliability are required. Its attributes such as Minimum Trace Spacing: 0.2mm, Maximum Panel Size: 600mm X 600mm, Surface Finish: HASL, Layer Count: 2, and Minimum Hole Size: 0.3mm make it an ideal choice for a wide range of industries and applications.


Customization:

- Impedance Control: Yes

- Layer Count: 2

- Minimum Trace Width: 0.2mm

- Solder Mask Color: Green

- Minimum Hole Size: 0.3mm

Get your Power PCB with thick copper tailored to your specific needs. Order now and get the best quality and service!


Support and Services:

Our Thick Copper PCB product is designed to meet the demands of high current and high power applications. We offer technical support and services to ensure the optimal performance of our product, including:

  • Design guidance for thick copper PCBs
  • Assistance with material selection for high power applications
  • Testing and validation services to ensure product performance
  • Customization options to meet specific requirements
  • Fast turnaround times for prototyping and production

Our team of experts is dedicated to providing the highest quality support and service to our customers. Contact us for any technical assistance or further information.


Packing and Shipping:

Product Packaging:

The Thick Copper PCB product will be packed securely in an anti-static bag and then placed in a sturdy cardboard box with sufficient padding to prevent any damage during transit. The box will be labeled with the product name, quantity, and any special handling instructions if necessary.

Shipping:

Once the order for the Thick Copper PCB product has been processed, it will be shipped via a reliable courier service. The shipping time and cost will depend on the destination and the chosen shipping method. Customers will be provided with a tracking number so they can monitor the progress of their shipment.


FAQ:

Q: What is the thickness range for the Thick Copper PCB product?
A: The thickness range is from 2oz to 10oz.

Q: What is the copper weight range for the Thick Copper PCB product?
A: The copper weight range is from 70um to 400um.

Q: How many layers can the Thick Copper PCB product have?
A: The product supports 1 to 6 layers.

Q: What is the minimum hole size that can be achieved with the Thick Copper PCB product?
A: The minimum hole size that can be achieved is 0.2mm.

Q: What is the maximum board size for the Thick Copper PCB product?
A: The maximum board size is 600mm x 1200mm.
