High Frequency PCB
Created with Pixso.

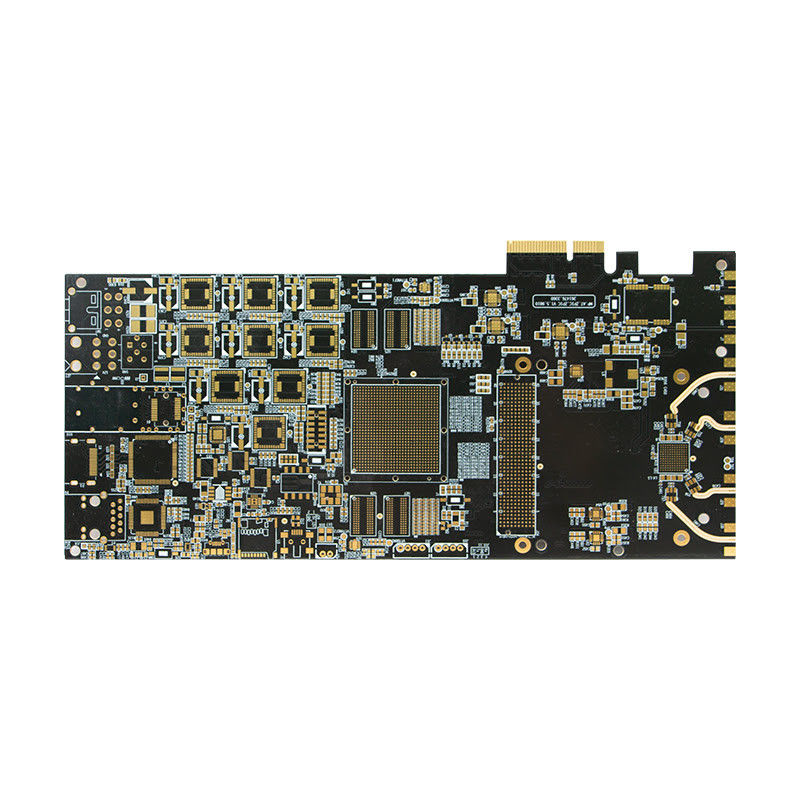

Rogers PTFE High Frequency PCB 1 Oz Copper Thinknes High Frequency Board

Rogers PTFE High Frequency PCB 1 Oz Copper Thinknes High Frequency Board

Brand Name: Ben Qiang
Model Number: FR-4/Rogers
MOQ: 1PCS
Price: custom made
Payment Terms: Bank Transfer/Alipay/PayPal
Supply Ability: 200,000 square meters/year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO/TS16949/RoHS/TS16949
Surface Finished:
Immersion Gold
Operating Temperature:
-55℃ To 125℃
Material:
Rogers/PTFE
Min Via:
0.1mm Laser Drill, 0.2mm Mechanic Drill
Rohs Compliant:
Yes
Board Thk:
1.0MM
Impedance Value:
±10%
Minimum Hole Size:
0.2mm
Packaging Details:
Air bead vacuum packaging
Supply Ability:
200,000 square meters/year
Highlight:

High Frequency PCB 1 Oz

,

PTFE High Frequency PCB

,

Rogers High Frequency Board

Product Description

1 Oz Copper Thinknes High Frequency PCB using ENIG Surface Finishing for Rogers/PTFE

Product Description:

High Frequency PCB
Product Overview

The High Frequency PCB is a type of printed circuit board that is designed for high-frequency applications. It is also known as High-Frequency Microstrip PCB, High-Frequency RF PCB, High-Frequency Radio-frequency PCB, High-Frequency Communication PCB, and High-Frequency Automotive PCB.

This product is specifically designed to meet the demands of high-frequency communication and automotive systems. It is highly reliable, efficient, and versatile, making it an ideal choice for various applications.

Rohs Compliant

The High Frequency PCB is Rohs compliant, ensuring that it is free from hazardous substances such as lead, mercury, and cadmium. This makes it an environmentally friendly and safe option for use in electronic devices.

Board Thickness: 1.0MM

The board thickness of the High Frequency PCB is 1.0MM, providing a compact and lightweight design. This makes it suitable for use in small electronic devices and automotive systems where space is limited.

Application: Communicate Automotive

The High Frequency PCB is specifically designed for use in automotive communication systems. It is capable of handling high-frequency signals, ensuring smooth and efficient communication between different components in the vehicle.

Impedance Value: ±10%

The High Frequency PCB has an impedance value of ±10%, ensuring stable and accurate signal transmission. This makes it a reliable option for high-frequency applications that require precise signal control.

Surface Finished: Immersion Gold

The surface of the High Frequency PCB is finished with immersion gold, providing a smooth and flat surface. This surface finish helps to reduce signal loss and improve the overall performance of the PCB.

Overall, the High Frequency PCB is a high-quality product that is designed to meet the demands of high-frequency applications. With its Rohs compliance, compact design, and reliable performance, it is a top choice for high-frequency communication and automotive systems.



Features:

  • Product Name: High Frequency PCB
  • Impedance Value: ±10%
  • Outline: Rout And Score
  • Final Foil: 1 Oz
  • Application: Communicate, Automotive
  • Operating Temperature: -55℃ To 125℃
  • High-Frequency Signal PCB
  • High-Frequency Microwave PCB
  • High-Speed Digital PCB


Technical Parameters:

Attribute Value
Product Name High Frequency PCB
Usage OEM Electronics
Board Thickness 0.2mm-6.35mm
Rohs Compliant Yes
Final Foil 1 Oz
Minimum Hole Size 0.2mm
Surface Finishing ENIG
Surface Finished Immersion Gold
Outline Rout And Score
Material Rogers/PTFE
Application Communicate Automotive
Key Features High-Frequency RF PCB, High-Frequency Stripline PCB, High-speed PCB


Applications:

High Frequency PCB: The Perfect Solution for Your RF Applications
What is High Frequency PCB?

High Frequency PCB, also known as High-Frequency Stripline PCB or High-Frequency Microwave PCB, is a specialized type of printed circuit board that is designed for use in high-speed and high-frequency electronic applications. It is ideal for applications that require high signal integrity, low loss, and minimal distortion.

Key Product Attributes
  • Operating Temperature: -55℃ to 125℃
  • Surface Finishing: ENIG (Electroless Nickel Immersion Gold)
  • Usage: OEM Electronics
  • Minimum Hole Size: 0.2mm
  • Material: Rogers/PTFE
Applications and Uses

High Frequency PCB is widely used in various industries and applications, including:

  • Telecommunications: High Frequency PCB is commonly used in telecommunications equipment such as cell phone towers, satellite communication systems, and radar systems. Its high-frequency capabilities make it perfect for transmitting and receiving signals with minimal interference or loss.
  • Wireless Devices: With the rise of wireless devices, the demand for High Frequency PCB has also increased. It is used in devices such as Wi-Fi routers, Bluetooth devices, and GPS systems, providing high-speed and reliable wireless connectivity.
  • Medical Equipment: High Frequency PCB is used in various medical equipment, including MRI machines, heart monitors, and ultrasound machines. Its high-frequency capabilities allow for accurate and reliable data transmission, making it crucial in the medical field.
  • Aerospace and Defense: High Frequency PCB is widely used in the aerospace and defense industry for applications such as radar systems, satellite communication, and military equipment. Its high-speed and high-frequency capabilities make it essential for critical and complex operations.
  • Industrial Equipment: High Frequency PCB is also used in industrial equipment such as automated machinery, robotics, and control systems. Its high-frequency capabilities make it ideal for precise and efficient control of equipment.
Why Choose High Frequency PCB?

High Frequency PCB offers several benefits that make it the top choice for high-speed and high-frequency applications:

  • High Signal Integrity: High Frequency PCB is designed with specialized materials and techniques to ensure high signal integrity. It minimizes signal loss and distortion, allowing for accurate and reliable data transmission.
  • Low Loss: High Frequency PCB is designed to have low dielectric loss, which means that it can transmit signals without significant attenuation. This makes it perfect for applications that require high transmission efficiency.
  • Wide Temperature Range: With an operating temperature range of -55℃ to 125℃, High Frequency PCB is suitable for use in extreme temperature environments, making it versatile and reliable.
  • ENIG Surface Finish: High Frequency PCB is finished with ENIG, which provides a flat and smooth surface that is ideal for high-frequency applications. It also offers excellent corrosion resistance and solderability.
  • Rogers/PTFE Material: High Frequency PCB is made with specialized materials such as Rogers and PTFE, which have excellent dielectric properties and can withstand high frequencies without significant signal loss.
In Conclusion

High Frequency PCB is a high-quality and high-performance printed circuit board that is essential for demanding RF applications. With its excellent signal integrity, low loss, and wide temperature range, it is the perfect choice for a wide range of industries and applications. Choose High Frequency PCB for your next project and experience reliable and efficient high-frequency performance.



Customization:

High Frequency PCB Customization Service

Product Name: High-Frequency Printed Circuit Board (PCB)

Product Description: Our High-Frequency PCB is a specialized circuit board designed to handle high-frequency signals with precision and reliability. It is ideal for use in OEM electronic products, providing excellent performance and quality.

Operating Temperature: -55℃ To 125℃

Final Foil: 1 Oz

Minimum Hole Size: 0.2mm

Rohs Compliant: Yes

Usage: OEM Electronics

Key Features:

  • High-Frequency Printed Circuit Board
  • Customized Design and Manufacturing
  • Precision Handling of High-Frequency Signals
  • Excellent Performance and Reliability
  • Rohs Compliant and Environmentally Friendly
  • Wide Operating Temperature Range for Versatility
  • 1 Oz Final Foil for Optimal Signal Transmission
  • Minimum Hole Size of 0.2mm for High Precision
  • Perfect for OEM Electronics Applications

Take your High-Frequency PCB to the next level with our customized services.

High-Frequency Printed Circuit Board Manufacturing:

Our experienced team specializes in the design and manufacturing of High-Frequency PCBs. We use advanced technology and techniques to ensure the highest quality and precision in every board we produce.

High-Frequency PCB Customization:

We understand that every project is unique and requires a customized approach. That's why we offer customization services for our High-Frequency PCBs to meet your specific requirements and specifications. From materials to design, we work closely with you to create the perfect solution for your high-frequency signal needs.

Choose our High-Frequency PCB Customization Service for exceptional performance and reliability.



Packing and Shipping:

High Frequency PCB Packaging and Shipping

Thank you for choosing our High Frequency PCB product! To ensure the safe delivery of your order, we have carefully packaged and shipped it with the following details:

Packaging:
  • All PCBs are individually wrapped in anti-static bags to prevent any damage from static electricity.
  • Multiple layers of bubble wrap are used to protect the PCBs during transportation.
  • The PCBs are then placed in sturdy and secure cardboard boxes.
  • For larger orders, wooden crates are used for added protection.
Shipping:
  • We offer worldwide shipping using reliable and trusted carriers such as DHL, FedEx, and UPS.
  • All orders are shipped within 1-3 business days after payment has been received.
  • Shipping times may vary depending on the destination, but we strive to deliver your order as quickly as possible.
  • Customers will be provided with a tracking number to monitor the status of their shipment.
  • In the event of any damage or loss during shipping, please contact us immediately and we will assist you with filing a claim.

Thank you again for choosing our High Frequency PCB product. We hope you are satisfied with your purchase and please do not hesitate to contact us for any further assistance.
