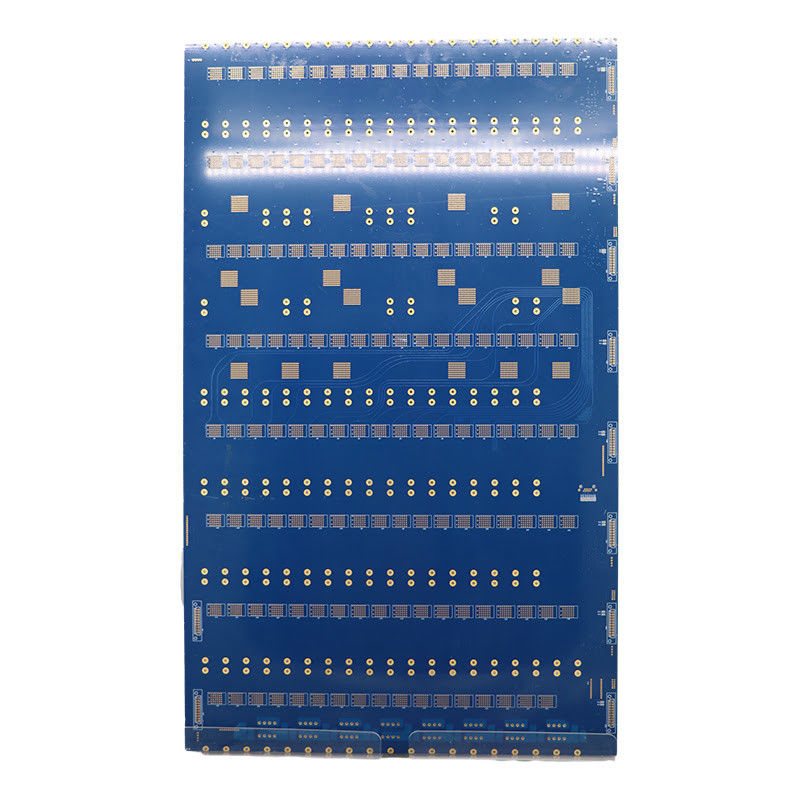

Green Soldermask Full Turnkey PCB Assembly ENIG Surface Finish

Product Description:

The Semiconductor PCB is a high-quality Printed Circuit Board designed specifically for use in semiconductor devices. It is a crucial component in the manufacturing process of semiconductors, providing a reliable and efficient platform for electronic components to function.

As a leading Semiconductor Circuit Board manufacturer, we have developed this product with the latest technology and high-quality materials to meet the demanding requirements of the semiconductor industry.

• Material: The Semiconductor PCB is made from FR-4, a flame-retardant fiberglass material known for its high strength and durability. This material is essential in providing a stable and reliable platform for electronic components to function in harsh environments.
• Surface Finish: The surface finish of this PCB is ENIG, a cost-effective and widely used surface finish in the industry. It offers excellent solderability and a flat surface for easy component placement.
• Lead Time: Our manufacturing process allows us to deliver the Semiconductor PCB in just 2 weeks, ensuring a quick turnaround time for our customers.
• Layer Count: This PCB has 14 layers, providing a compact design and reducing the overall size of the semiconductor device.
• Min Hole Size: The minimum hole size on this PCB is 0.2mm, allowing for precise and accurate placement of electronic components.

Choosing our Semiconductor PCB brings several benefits to your semiconductor manufacturing process, including:

• Reliability: With high-quality materials and advanced manufacturing techniques, our PCBs offer exceptional reliability, ensuring the smooth functioning of your semiconductor device.
• Efficiency: The compact design and precise hole placement of our PCBs optimize the performance of electronic components, leading to increased efficiency and productivity.
• Cost-Effectiveness: Our PCBs are competitively priced, making them a cost-effective choice without compromising on quality.

The Semiconductor PCB is a crucial component in the production of semiconductors. With its high-quality material, efficient design, and fast lead time, it is the ideal choice for semiconductor manufacturers looking for a reliable and cost-effective PCB solution. As a trusted Semiconductor Circuit Board manufacturer, we are committed to providing our customers with the best quality products and services. Contact us today to learn more about our Semiconductor PCB and how it can benefit your semiconductor manufacturing process.

Features:

• Product Name: Semiconductor PCB
• Material: FR-4
• Lead Time: 2 Weeks
• Min Trace Width: 0.1mm
• Special: Blind Microvias
• Through Hole Technology: No
• Board for Semiconductor
• Board for Semiconductor
• Semiconductor Board
• PCB for Semiconductor
• Semiconductor PCB

Technical Parameters:

Applications:

Semiconductor PCB, also known as Printed Circuit Board For Semiconductor, is a type of printed circuit board specifically designed for the production and assembly of semiconductor devices. It is widely used in the electronics industry for its high precision and reliability, making it an essential component for the manufacturing of semiconductors.

Printed PCB for Semiconductor is made up of multiple layers of non-conductive materials, such as fiberglass and epoxy resin, with thin layers of copper foil laminated on top. These layers are then etched to create a complex network of electrical connections, enabling the flow of electricity between different components.

• Surface Finish:ENIG is the most commonly used surface finish for Semiconductor PCB. It provides a smooth, even surface for the components to be soldered onto, ensuring a strong and reliable connection.
• Layer Count: Semiconductor PCB typically has 14 layers, but can have more depending on the complexity of the semiconductor device. The layers are connected through vias, small holes that allow the flow of electricity between layers.
• Through Hole Technology: Unlike traditional PCBs, Semiconductor PCB does not use through hole technology. Instead, it utilizes surface mount technology (SMT) for the placement and connection of components, resulting in a more compact and efficient design.
• Testing Service: Semiconductor PCBs undergo rigorous testing to ensure their functionality and reliability. This includes function tests and 100% testing of all components, guaranteeing a high-quality end product.
• Lead Time: The production of Semiconductor PCBs can be completed within 2 weeks, making it a fast and efficient choice for manufacturers.

Semiconductor PCBs are widely used in various applications in the electronics industry, including:

• Semiconductor Manufacturing: Semiconductor PCBs are an integral part of the production process for semiconductors. They are used to create complex circuits and connections, allowing for the precise control of electrical signals in semiconductor devices.
• Electronic Devices: From smartphones and laptops to medical equipment and automotive electronics, Semiconductor PCBs are used in a wide range of electronic devices. They provide the necessary circuitry for these devices to function properly and efficiently.
• Industrial Control Systems: As semiconductor devices are used in industrial control systems, Semiconductor PCBs play a crucial role in their operation. They are designed to withstand high temperatures, vibrations, and other harsh conditions, ensuring the reliable performance of these systems.
• Research and Development: Semiconductor PCBs are also used in research and development of new semiconductor technologies. They allow for the testing and prototyping of new designs, enabling the advancement of the industry.

Overall, Semiconductor PCBs are an essential component in the production and operation of semiconductor devices. With its high precision, reliability, and efficient production time, it is the go-to choice for manufacturers in the electronics industry.
