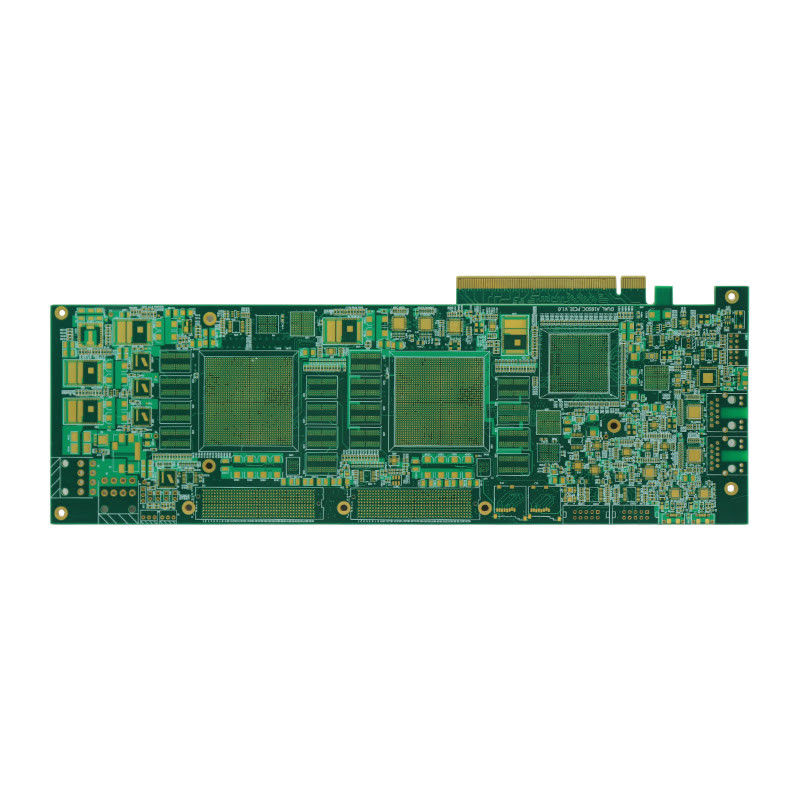

Impedance Control Thick Copper PCB White Silkscreen Color

Product Description:

The Thick Copper Power PCB is a heavy gauge copper power printed circuit board designed for high current capacity applications. It is a cost-effective solution for industries that require a thick copper power printed wiring board with high thermal conductivity and reliability.

The surface finish of the Thick Copper Power PCB is HASL (Hot Air Solder Leveling), which is a common and widely used surface finish in PCB manufacturing. It provides a flat, smooth surface for easy soldering and ensures good solderability, making it suitable for a variety of applications.

The solder mask color of the Thick Copper Power PCB is green, which is the standard color for PCBs. Green solder mask offers good contrast for component placement and makes it easier to identify any defects or errors during assembly. It also provides protection against environmental factors such as dust, moisture, and chemicals.

The Thick Copper Power PCB has a maximum panel size of 600mm X 600mm, making it suitable for larger and more complex designs. This allows for more components to be placed on the board, increasing its flexibility and functionality.

The Thick Copper Power PCB has a thickness of 3.2mm, which is the standard thickness for most PCBs. This thickness provides a sturdy and durable base for the heavy gauge copper and ensures high thermal conductivity and reliability.

The Thick Copper Power PCB has a layer count of 8, which means it has two layers of conductive material separated by an insulating layer. This allows for a more compact design and better control of signal routing, making it ideal for high current and high power applications.

• Heavy gauge copper power printed circuit board
• High current capacity copper PCB
• Thick copper power printed wiring board
• High thermal conductivity
• High reliability
• Cost-effective

Features:

• Product Name: Thick copper power PCB
• Silkscreen Color: White
• Minimum Hole Size: 0.3mm
• Thickness: 3.2mm
• Solder Mask Color: Green
• Minimum Trace Width: 0.2mm
• Robust copper core power board
• Reinforced copper power circuitry
• Heavy gauge copper power printed circuit board

Technical Parameters:

Applications:

The Thick Copper Power PCB is a highly advanced printed circuit board that is designed to meet the demands of high-current applications. With its sturdy copper power substrate and enhanced technology, this PCB is capable of handling heavy loads and ensuring reliable performance even in extreme conditions.

• Rohs Compliant: This PCB is compliant with the Restriction of Hazardous Substances (RoHS) directive, which restricts the use of certain hazardous materials in electronic products. This makes it safe for both the environment and human health.
• Copper Thickness: The Thick Copper Power PCB has a copper thickness of 3oz, making it capable of carrying high currents without overheating or degrading in performance.
• Minimum Trace Width: With a minimum trace width of 0.2mm, this PCB allows for precise routing of high-current signals, ensuring reliable and efficient performance.
• Solder Mask Color: The solder mask color used for this PCB is green, which not only provides a visually appealing appearance but also offers excellent protection against oxidation and corrosion.
• Surface Finish: The Thick Copper Power PCB is finished with HASL (Hot Air Solder Leveling), which provides a flat and smooth surface for easy soldering and improved electrical performance.

The Thick Copper Power PCB is designed for use in various high-current applications, such as:

• Power Supplies: With its high current capacity and temperature resistance, this PCB is ideal for use in power supply units for electronic devices, ensuring stable and efficient power delivery.
• Industrial Equipment: The Thick Copper Power PCB is also suitable for use in industrial equipment that requires high current and can withstand harsh operating conditions.
• Solar Panels: As solar panels generate high currents, the Thick Copper Power PCB can be used in their circuitry to ensure reliable and efficient power conversion.
• Electric Vehicles: The growing popularity of electric vehicles has increased the demand for high-performance PCBs. The Thick Copper Power PCB can be used in the battery management system, motor controllers, and other high-current components of electric vehicles.

The Thick Copper Power PCB is a highly versatile and reliable product that is essential for various high-current applications. With its robust construction, advanced technology, and compliance with international regulations, it is the go-to choice for industries looking for superior performance and durability in their electronic products.

Customization:

The Thick Copper Power PCB is a highly specialized and robust copper core power board designed for heavy-duty applications. With a durable copper power printed board and reinforced copper power circuitry, this product is able to handle high power and voltage requirements with ease.

• Minimum Hole Size: 0.3mm
• Silkscreen Color: White
• Surface Finish: HASL
• Solder Mask Color: Green
• Impedance Control: Yes

• Customized hole size options to meet specific application needs
• Choice of white silkscreen color for clear and easy-to-read labeling
• Surface finish options including HASL, immersion tin, and immersion silver
• Selection of solder mask colors, including green, blue, and black
• Impedance control for precise signal transmission and optimized performance

With our Thick Copper Power PCB customization service, we can provide you with a tailored solution that meets your exact specifications. Our team of experts will work closely with you to understand your unique requirements and deliver a high-quality product that meets your expectations. Contact us now to learn more about our customization options and how we can help you achieve your desired results.

Packing and Shipping:

Our Thick Copper Power PCBs are carefully packaged and shipped to ensure safe delivery to our customers. Here are the details of our packaging and shipping process:

• Each PCB is individually wrapped in anti-static bubble wrap to protect it from any potential damage during transportation.
• The wrapped PCBs are then placed in a sturdy cardboard box, with appropriate cushioning materials to prevent movement and absorb any shocks during transit.
• For larger orders, the PCBs are packaged in multiple layers, with additional padding and support to ensure safe delivery.
• The box is then sealed and clearly labeled with the customer's information and order details for easy identification.

We offer various shipping options to accommodate our customers' needs. These include:

• Standard shipping: This is our most cost-effective option, with an estimated delivery time of 5-7 business days.
• Expedited shipping: For urgent orders, we offer expedited shipping with an estimated delivery time of 2-3 business days. Additional fees may apply.
• International shipping: We ship our PCBs worldwide to meet the needs of our global customers. Delivery times may vary depending on the destination.

Rest assured that we take great care in packaging and shipping our Thick Copper Power PCBs to ensure they arrive at your doorstep in pristine condition.
