Automotive PCB Layout Design and EMS - IATF16949 Certified for Superior Assembly Quality

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO/TS16949/RoHS/TS16949

Point:

359

Components Type:

PCB Size:

220mm*186mm

Minimum Package Size Of Resistance Capacitance Sensing:

0402

Minimum Device Pin Spacing:

0.65

Welding Mode:

Double-sided Reflow Soldering + Wave Soldering

Manufacturing Process:

PCB Board Making + Device Centralized Procurement + Chip Processing

Packaging Details:

Air bead vacuum packaging

Supply Ability:

200,000 square meters/year

Highlight:

Product Description

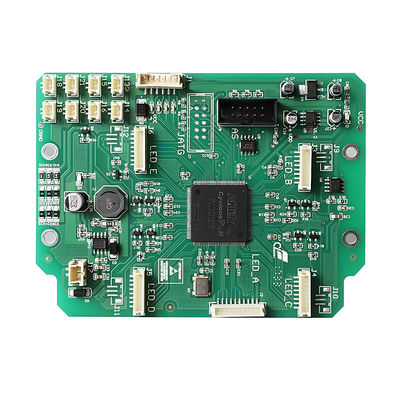

Automotive sunroof control circuit board PCBA circuit board program

Project	SMT processing capacity
SMT capacity	10 million solder joints/day
SMT production line	8
Surplus	Resistance and capacitance: 0.3%
Surplus	IC: 0%
Board type	POP/PCB/FPC/Rigid-flex board/HDI/High Frequency&Speed PCB/Metal-PCB
Mounting component precision	Minimum package: 03015CHIP/0.20PLT
	Minimum Component Accuracy:±0.034MM
	IC placement accuracy: ± 0.025MM
PCB SPEC	PCB size: 5050MM~774710MM
PCB SPEC	PCB thickness: 0.3~6.5MM
