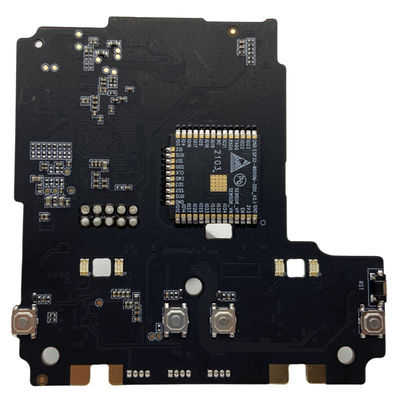

Smart Home Communication PCB Assembly PCB Printing And Assembly SMT SMD Processing

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO/TS16949/RoHS/TS16949

Point:

156

Components Type:

PCB Size:

124mm*110mm

Minimum Package Size Of Resistance Capacitance Sensing:

0201

Minimum Device Pin Spacing:

0.5

Welding Mode:

Double-sided Reflow Soldering

Manufacturing Process:

PCB Board Making + Device Collection + Patch Processing

Packaging Details:

Air bead vacuum packaging

Supply Ability:

200,000 square meters/year

Highlight:

Product Description

Smart Home|SMT SMD Processing

Project	SMT processing capacity
SMT capacity	10 million solder joints/day
SMT production line	8
Surplus	Resistance and capacitance: 0.3%
Surplus	IC: 0%
Board type	POP/PCB/FPC/Rigid-flex board/HDI/High Frequency&Speed PCB/Metal-PCB
Mounting component precision	Minimum package: 03015CHIP/0.20PLT
	Minimum Component Accuracy:±0.034MM
	IC placement accuracy: ± 0.025MM
PCB SPEC	PCB size: 5050MM~774710MM
PCB SPEC	PCB thickness: 0.3~6.5MM
