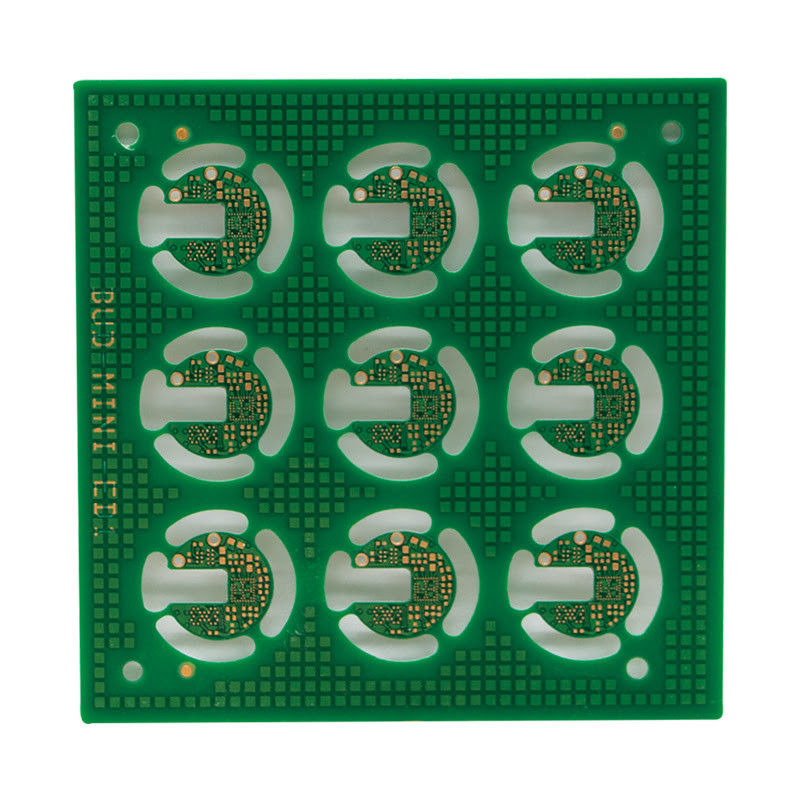

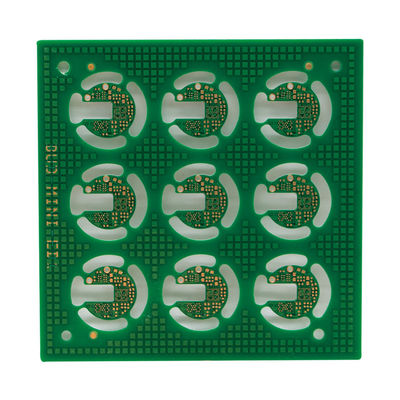

1+N+1 HDI Printed Circuit Boards 210um Inner Copper Thickness

Place of Origin Shenzhen, China
Brand Name Ben Qiang
Certification ISO/TS16949/RoHS/TS16949
Model Number FR-4/Rogers
Minimum Order Quantity 1PCS
Price custom made
Packaging Details Air bead vacuum packaging
Delivery Time 3-7 days delivery
Payment Terms Bank Transfer/Alipay/PayPal
Supply Ability 200,000 square meters/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Bluetooth Headset Characteristic 1 Laser,2 Lamination, 1+N+1
Material S1000-2m Layer 6L
Thickness 1.8±0.18mm Min Hole Diameterv Laser Hole :0.1mm Mechanical Hole 0.15mm. Aspect Ratio:4:1
Min Width/space 0.127mm(BGA) Surface Finish Immersion Gold: 0.05um
Internal Model C449027C06
High Light

1 N 1 Hdi Printed Circuit Boards

,

Hdi Printed Circuit Boards 210um

,

Hdi Multilayer Pcb 210um

Leave a Message
Product Description

HDI with 1+N+1

Project PCB process capability
Layer count 1-40 Layers
Min outer line width/space 3/3mil
Outer copper thickness 280um(8OZ)
Inner copper thickness 210um(6OZ)
Tolerance of PCB thickness board thickness≤1.0mm; ±0.1mm,+/-0.05mm below 4 layers
board thickness>1.0mm; ±10%
Minimum PTH Mechanical hole 4mil, laser 3mil
Material FR-4 ,High Tg ,Halogen-free ,PTFE ,Rogers,Polyimide
HDI Levels 2-7
Special Process

Buried blind vias, blind slots, rigid-flex combination,mixed pressure, back drilling, buried resistance,buriedcapacitance, milling steps, multi-combination impedance;
