Double Layers Electronics PCB Manufacturing Copper Thickness 1oz-6oz
Place of Origin | Shenzhen, China |
---|---|
Brand Name | Ben Qiang |
Certification | ISO/TS16949/RoHS/TS16949 |
Model Number | FR-4/Rogers |
Minimum Order Quantity | 1PCS |
Price | custom made |
Packaging Details | Air bead vacuum packaging |
Delivery Time | 3-7 days delivery |
Payment Terms | Bank Transfer/Alipay/PayPal |
Supply Ability | 200,000 square meters/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSolder Mask Color | Green, Red, Blue, Black, White | Copper Thickness | 1oz-6oz |
---|---|---|---|
Min. Silkscreen Clearance | 0.15mm | Layers | Single, Double, Multi-layer |
Type | Printed Circuit Board | Surface Finish | HASL, ENIG, Immersion Silver, OSP |
Min. Solder Mask Bridge | 0.08mm | Min. Solder Mask Clearance | 0.1mm |
High Light | Electronics Pcb Manufacturing 1oz,Electronics Pcb Manufacturing 6oz |

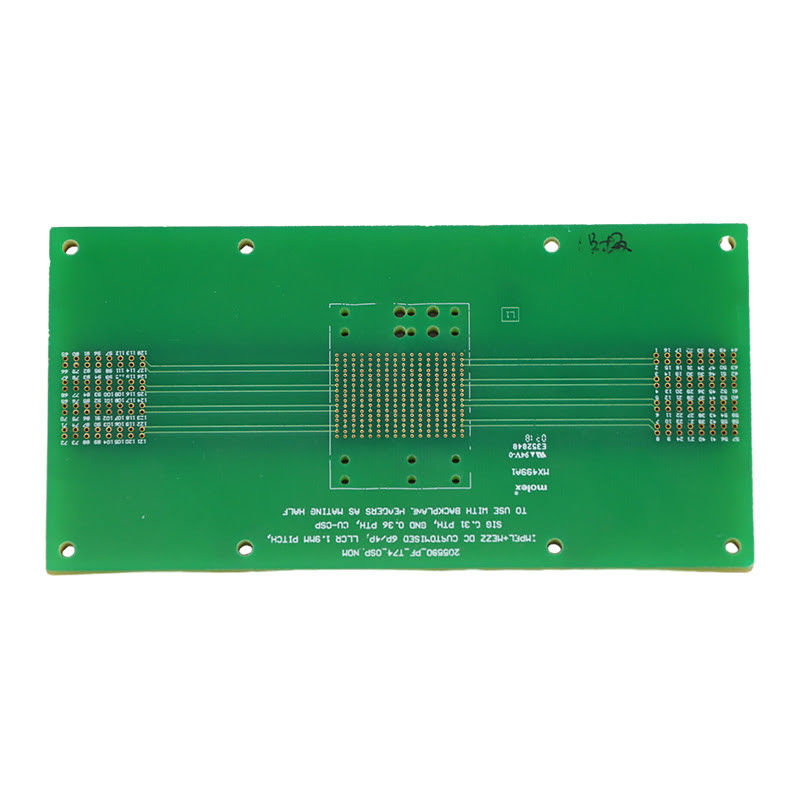

Green Consumer Device Electroplate Computer Card with Min. Solder Mask Clearance of 0.1mm
Product Description:
The Retail Electronic Graphics Hard Board is a high-quality printed circuit board specifically designed for use in consumer electronics. This hard board is an essential component in household electric devices, ensuring the smooth and efficient operation of various electronic components.
The Retail Electronic Graphics Hard Board is available in a range of copper thickness options, from 1oz to 6oz. This allows for a versatile and customizable approach to designing and manufacturing electronic devices, ensuring that the board can support a wide range of components and withstand varying levels of current.
The minimum trace width and spacing for the Retail Electronic Graphics Hard Board is 0.1mm. This precision in design and manufacturing ensures that the board can accommodate intricate and complex circuitry, providing reliable and efficient connections between components.
The maximum panel size for the Retail Electronic Graphics Hard Board is 600mm X 1200mm. This generous size allows for larger and more complex electronic devices to be built, making it suitable for a wide range of consumer electronics such as televisions, computers, and home appliances.
The Retail Electronic Graphics Hard Board is available in a variety of solder mask colors including green, red, blue, black, and white. These options not only add aesthetic appeal but also serve a functional purpose by providing insulation and protection for the circuitry.
The silkscreen on the Retail Electronic Graphics Hard Board is available in white, black, and yellow. This allows for clear and visible labeling and identification of components on the board, making it easier for technicians to troubleshoot and repair electronic devices.
When it comes to retail electronic graphics hard boards, the Retail Electronic Graphics Hard Board stands out for its high-quality and reliable performance. With its 1oz-6oz copper thickness, 0.1mm min. trace width/spacing, and 600mm X 1200mm max. panel size, along with a range of solder mask and silkscreen color options, this board is a top choice for manufacturers and consumers alike. Trust in the Retail Electronic Graphics Hard Board for all your consumer electronics needs.
Features:
- Product Name: Consumer Electronics PCB
- Copper Thickness: 1oz-6oz
- Material: Fiberglass, Copper
- Min. Silkscreen Clearance: 0.15mm
- Thickness: 0.2mm-6.0mm
- Min. Solder Mask Bridge: 0.08mm
- Personal Appliance Electric Board
- Electronic Computer Printed Circuit Board
- Retail Electronic Graphics Hard Board
Technical Parameters:
Technical Specifications | Consumer Electronics PCB |
---|---|
Max. Panel Size | 600mm X 1200mm |
Type | Printed Circuit Board |
Min. Trace Width/Spacing | 0.1mm/0.1mm |
Silkscreen Color | White, Black, Yellow |
Min. Solder Mask Bridge | 0.08mm |
Material | Fiberglass, Copper |
Min. Solder Mask Clearance | 0.1mm |
Copper Thickness | 1oz-6oz |
Min. Hole Size | 0.15mm |
Thickness | 0.2mm-6.0mm |
Key Features | - Suitable for Electronic Computer Printed Circuit Board, Home Electronic Device Mother Plate, and Household Electric Device Panel - Max. panel size of 600mm X 1200mm offers ample space for complex circuit designs - Made with high-quality fiberglass and copper materials for durability and efficient electrical conductivity - Min. trace width/spacing of 0.1mm/0.1mm allows for precise and accurate circuitry - Available in white, black, and yellow silkscreen color options for clear labeling and branding - Min. solder mask bridge of 0.08mm ensures proper insulation and protection of circuit components - Min. solder mask clearance of 0.1mm prevents short circuits and ensures reliable performance - Copper thickness options range from 1oz to 6oz for various power and signal requirements - Min. hole size of 0.2mm allows for smaller components and compact designs - Thickness options from 0.2mm to 6.0mm cater to different product requirements and applications |
Applications:
The Consumer Electronics PCB (Printed Circuit Board) is a crucial component in the production of various home electronic devices. It serves as the mother plate for household electric device panels, providing a solid foundation for the end user device circuit plates. With its advanced technology and high-quality materials, the Consumer Electronics PCB ensures the smooth operation and reliable performance of electronic devices in various applications.
- Min. Trace Width/Spacing: 0.1mm/0.1mm
- Material: Fiberglass, Copper
- Copper Thickness: 1oz-6oz
- Thickness: 0.2mm-6.0mm
- Surface Finish: HASL, ENIG, Immersion Silver, OSP
The Consumer Electronics PCB is widely used in a variety of home electronic devices, including but not limited to:
- Televisions
- Smartphones and tablets
- Computers and laptops
- Home appliances such as refrigerators, washing machines, and air conditioners
- Gaming consoles
- Audio and video equipment
Its versatility and reliability make it suitable for use in both small and large-scale production of electronic devices. The Consumer Electronics PCB can also be customized to meet the specific requirements of different applications, making it a versatile and essential component in the electronics industry.
The use of Consumer Electronics PCB in electronic devices offers several benefits, including:
- Improved efficiency: With its advanced technology and high-quality materials, the Consumer Electronics PCB ensures the smooth and efficient operation of electronic devices.
- Durable construction: The use of fiberglass and copper material makes the PCB strong and durable, ensuring a longer lifespan for electronic devices.
- Cost-effective: The Consumer Electronics PCB is cost-effective, making it a preferred choice for manufacturers looking to produce high-quality and affordable electronic devices.
- Customization: The PCB can be customized to meet the specific requirements of different electronic devices, allowing for greater flexibility and versatility in production.
Customization:
This service is dedicated to providing customized Printed Circuit Boards (PCB) for end user devices, including household electric device panels and personal appliance electric boards. Our high-quality PCBs are available in a variety of options to meet your specific needs and requirements.
- Min. Trace Width/Spacing: 0.1mm/0.1mm
- Surface Finish: HASL, ENIG, Immersion Silver, OSP
- Layers: Single, Double, Multi-layer
- Type: Printed Circuit Board
- Max. Panel Size: 600mm X 1200mm
Our End User Device Circuit Plates are designed with precision and reliability in mind. They can withstand high temperatures and provide excellent electrical conductivity for your devices. With a variety of surface finish options, you can choose the best one for your specific application.
For Household Electric Device Panels, we offer customized solutions to meet your unique requirements. Our PCBs are made with high-quality materials and advanced manufacturing techniques, ensuring durability and efficiency in your household devices.
Personalize your Appliance Electric Boards with our customizable options. From single to multi-layer boards, we have the capabilities to provide high-performance PCBs for your personal appliances. Our team of experts will work closely with you to ensure your satisfaction.
Choose our Consumer Electronics PCB Customization Service for reliable and top-quality solutions for all your end user devices, household electric devices, and personal appliances. Contact us now to get started.
Packing and Shipping:
Our Consumer Electronics PCB product is carefully packaged to ensure safe and secure delivery to our customers. Each PCB is individually packaged in anti-static bags to protect them from any damage during transportation. The anti-static bags are then placed in sturdy cardboard boxes, along with protective padding materials, to further prevent any potential damage. The boxes are labeled with the product name and specifications for easy identification.
We offer various shipping options for our customers to choose from, depending on their location and preferred delivery time. Our standard shipping method is through reliable courier services, which offer door-to-door delivery with tracking information provided. Customers can also opt for express shipping for faster delivery. We ship our products globally, ensuring that our customers receive their orders in a timely manner.
For bulk orders, we offer freight shipping through sea or air. Our team will coordinate with the chosen freight company to ensure smooth and timely delivery of the products. We also provide necessary documentation and customs clearance services for international shipments to avoid any delays or issues.
For customers who prefer to use their own shipping accounts, we offer the option to arrange for pick up from our warehouse. Our team will assist in coordinating with the shipping company and preparing the necessary documents for pick up.
At Consumer Electronics PCB, we take great care in packaging and shipping our products to ensure they arrive at our customers' doorstep in pristine condition. We are committed to providing a seamless and hassle-free shipping experience for our customers.
