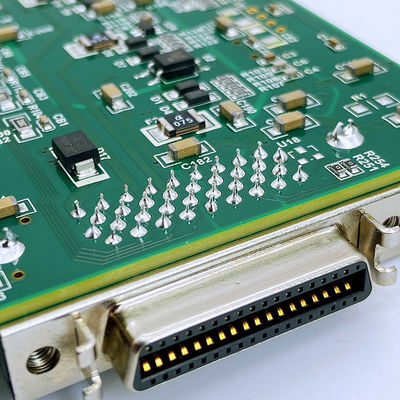

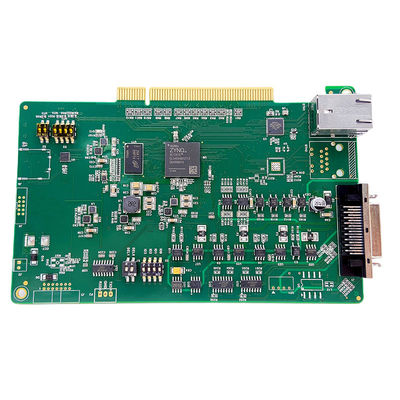

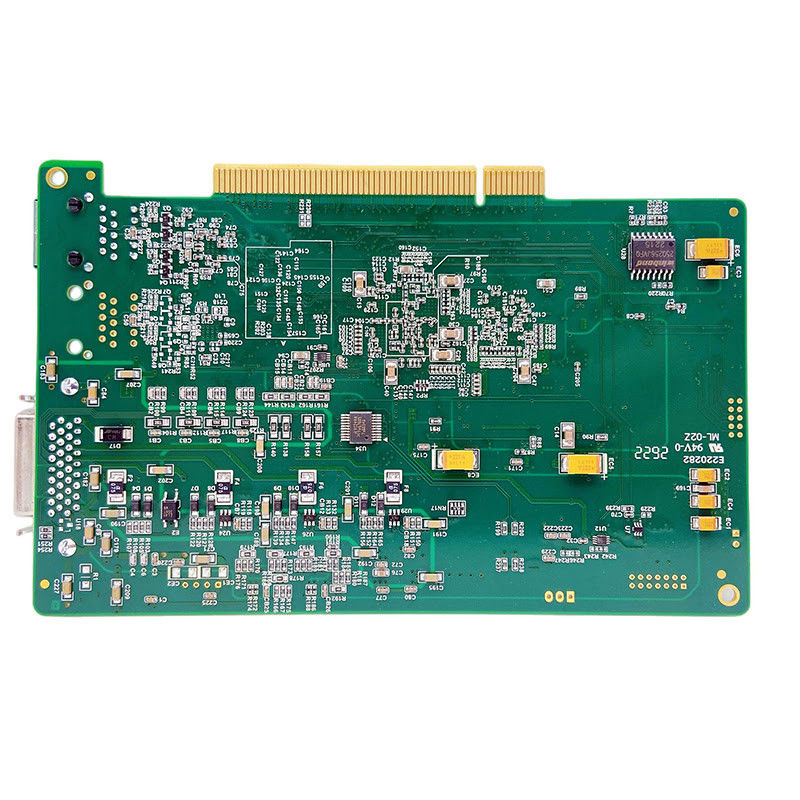

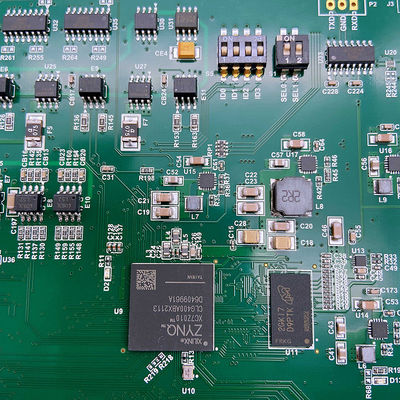

286 Point Industrial Control PCB Assembly SMT Processing Motion Control Card
Place of Origin | Shenzhen, China |
---|---|
Brand Name | Ben Qiang |
Certification | ISO/TS16949/RoHS/TS16949 |
Model Number | FR-4/Rogers |
Minimum Order Quantity | 1PCS |
Price | custom made |
Packaging Details | Air bead vacuum packaging |
Delivery Time | 3-7 days delivery |
Payment Terms | Bank Transfer/Alipay/PayPal |
Supply Ability | 200,000 square meters/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Point | 286 | Components Type | 81 |
---|---|---|---|
PCB Size | 202mm*134mm | Minimum Package Size Of Resistance Capacitance Sensing | 0201 |
Minimum Device Pin Spacing | 0.5 | Welding Mode | Double-sided Reflow Soldering + Wave Soldering |
Manufacturing Process | SMD Processing + Cleaning + Anti-static Packaging | ||
High Light | Industrial Control PCB Assembly Motion Control,Industrial Control PCB Assembly SMT processing,286 Point industrial pcb assembly |
Product Description
Motion Control Card|PCBA SMT Processing
Project | SMT processing capacity |
---|---|
SMT capacity | 10 million solder joints/day |
SMT production line | 8 |
Surplus | Resistance and capacitance: 0.3% |
IC: 0% | |
Board type | POP/PCB/FPC/Rigid-flex board/HDI/High Frequency&Speed PCB/Metal-PCB |
Mounting component precision | Minimum package: 03015CHIP/0.20PLT |
Minimum Component Accuracy:±0.034MM | |
IC placement accuracy: ± 0.025MM | |
PCB SPEC |
PCB size: 50*50MM~774*710MM |
PCB thickness: 0.3~6.5MM |
