High Frequency PCB
Created with Pixso.

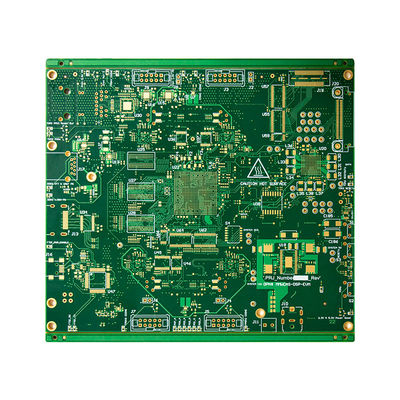

TU-883 High Frequency PCB 100um Min width Hdi Pcb 2 N 2 High Speed

TU-883 High Frequency PCB 100um Min width Hdi Pcb 2 N 2 High Speed

Brand Name: Ben Qiang
Model Number: FR-4/Rogers
MOQ: 1PCS
Price: custom made
Payment Terms: Bank Transfer/Alipay/PayPal
Supply Ability: 200,000 square meters/year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO/TS16949/RoHS/TS16949
Application:
2 Laser, 2 Lamination, 2+N+2
Characteristic:
TU-883
Material:
S1000-2M
Layer:
22L
Thickness:
3.35±0.25mm
Min Hole Diameterv:
Laser Hole: 0.15mm, Mechanical Hole 0.275mm. Aspect Ratio:12:1
Min Width/space:
100/100um
Surface Finish:
ENIG(0.05um)
Internal Model:
J092247C22
Packaging Details:
Air bead vacuum packaging
Supply Ability:
200,000 square meters/year
Highlight:

TU-883 High Frequency PCB

,

High Frequency PCB 100um

,

Hdi Pcb 2 N 2 High Speed

Product Description

HDI 2+N+2 High Speed

Project PCB process capability
Layer count 1-40 Layers
Min outer line width/space 3/3mil
Outer copper thickness 280um(8OZ)
Inner copper thickness 210um(6OZ)
Tolerance of PCB thickness board thickness≤1.0mm; ±0.1mm,+/-0.05mm below 4 layers
board thickness>1.0mm; ±10%
Minimum PTH Mechanical hole 4mil, laser 3mil
Material FR-4 ,High Tg ,Halogen-free ,PTFE ,Rogers,Polyimide
HDI Levels 2-7
Special Process

Buried blind vias, blind slots, rigid-flex combination,mixed pressure, back drilling, buried resistance,buriedcapacitance, milling steps, multi-combination impedance;
