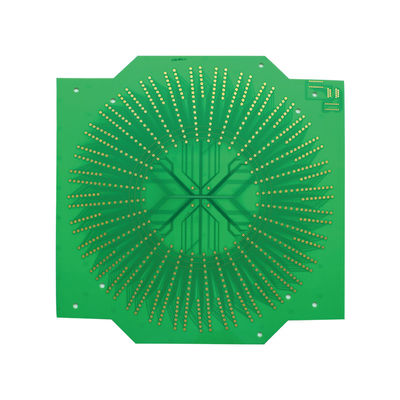

1-40 Layers Semiconductor Board S1000-2M 4+N+4 HDI PCB S230160C10

  • 1-40 Layers Semiconductor Board S1000-2M 4+N+4 HDI PCB S230160C10
Place of Origin Shenzhen, China
Brand Name Ben Qiang
Certification ISO/TS16949/RoHS/TS16949
Model Number FR-4/Rogers
Minimum Order Quantity 1PCS
Price custom made
Packaging Details Air bead vacuum packaging
Delivery Time 3-7 days delivery
Payment Terms Bank Transfer/Alipay/PayPal
Supply Ability 200,000 square meters/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Semiconductor Testing Characteristic 4+N+4 HDI PCB
Material S1000-2M Layer 10L
Thickness 2.2±0.2mm Min Hole Diameterv Laser Hole: 0.10mm; Mechanical Hole: 0.2mm, Aperture Ratio: 11:1
Min Width/space 200/110um Surface Finish Immersion Gold 2U"
Internal Model S230160C10 Place Of Origin Shenzhen, China
High Light

40 Layers Semiconductor Board

,

Semiconductor Board S1000-2M
Leave a Message
Product Description
Project PCB process capability
Layer count 1-40 Layers
Min outer line width/space 3/3mil
Outer copper thickness 280um(8OZ)
Inner copper thickness 210um(6OZ)
Tolerance of PCB thickness board thickness≤1.0mm; ±0.1mm,+/-0.05mm below 4 layers
board thickness＞1.0mm; ±10%
Minimum PTH Mechanical hole 4mil, laser 3mil
Material FR-4 ,High Tg ,Halogen-free ,PTFE ,Rogers,Polyimide
HDI Levels 2-7
Special Process

Buried blind vias, blind slots, rigid-flex combination,mixed pressure, back drilling, buried resistance,buriedcapacitance, milling steps, multi-combination impedance;
